BRANCH 87.5° - (830.075.160)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.075.160
EAN no.: 5705499412550
NRF no.: 2172338
LVI no.: 0246016

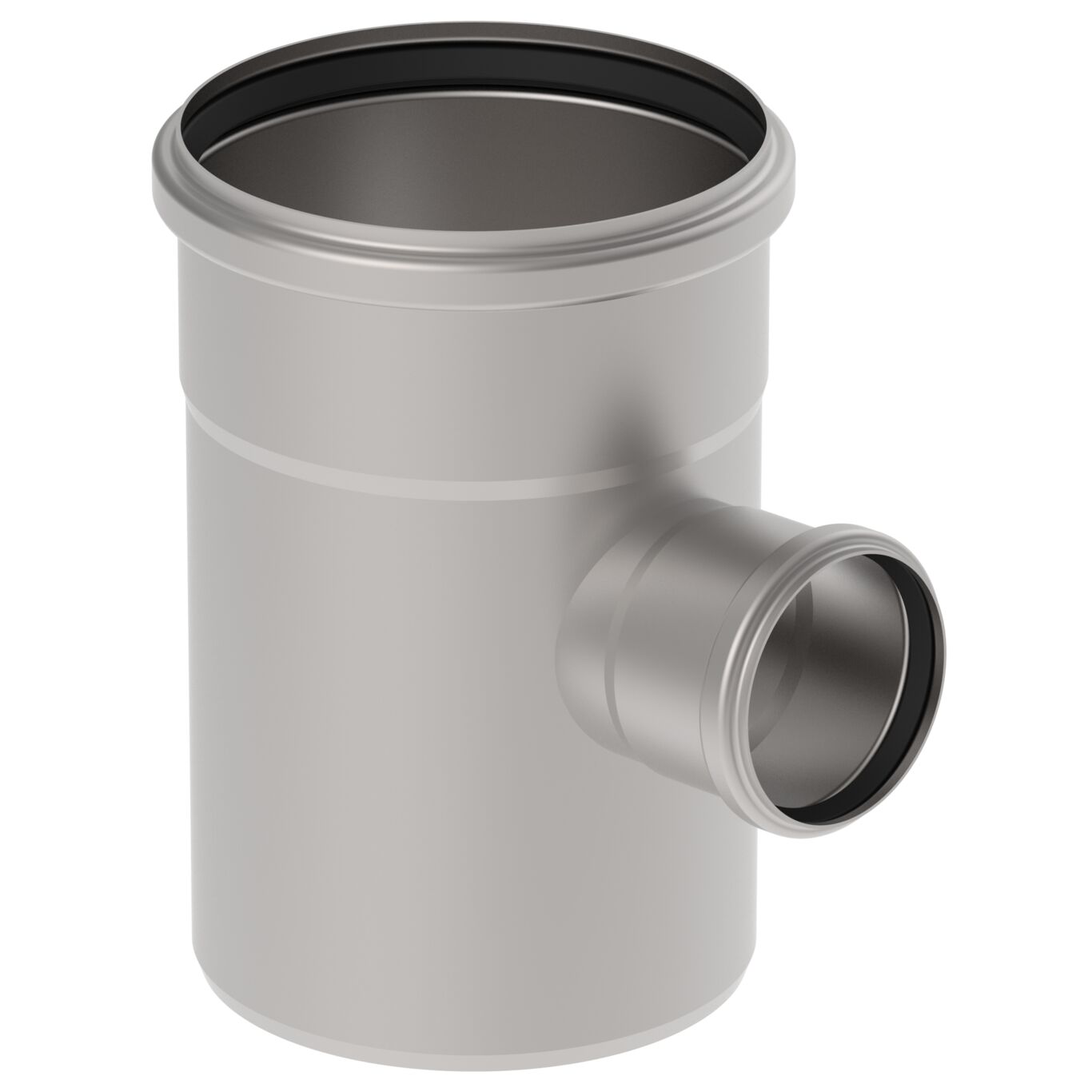

BRANCH 87.5°

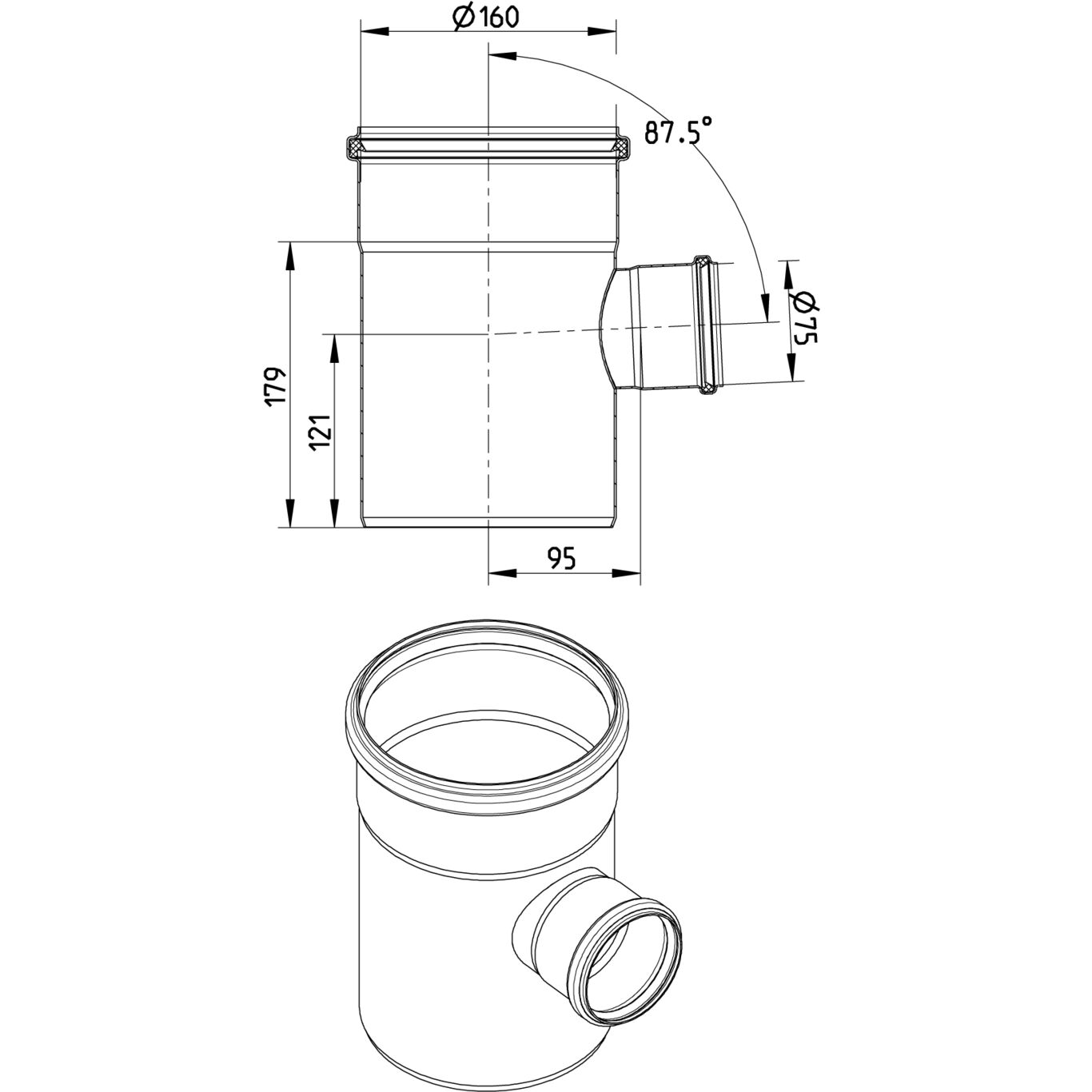

-Pipe diameter: Ø160mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 179 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,46 |
| Weight (lbs) | 3,22 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
BLÜCHER® EuroPipe EPD
TÜRK LOYDU - 25041616077231247
Declaration of Perfomance EN1124-1-001
Declaration of Perfomance BS-EN1124-1-002
US - IAPMO File No.3247-EuroPipe
DE - TÜV Rheinland R 60178453 0001
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432 RINA -MAC320524XG EuroPipe Achilles Certificate - 46702 PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001
