BRANCH 87.5° - (830.050.082)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.050.082
EAN no.: 5705499411928
VVS no.: 160221080
NRF no.: 2172335

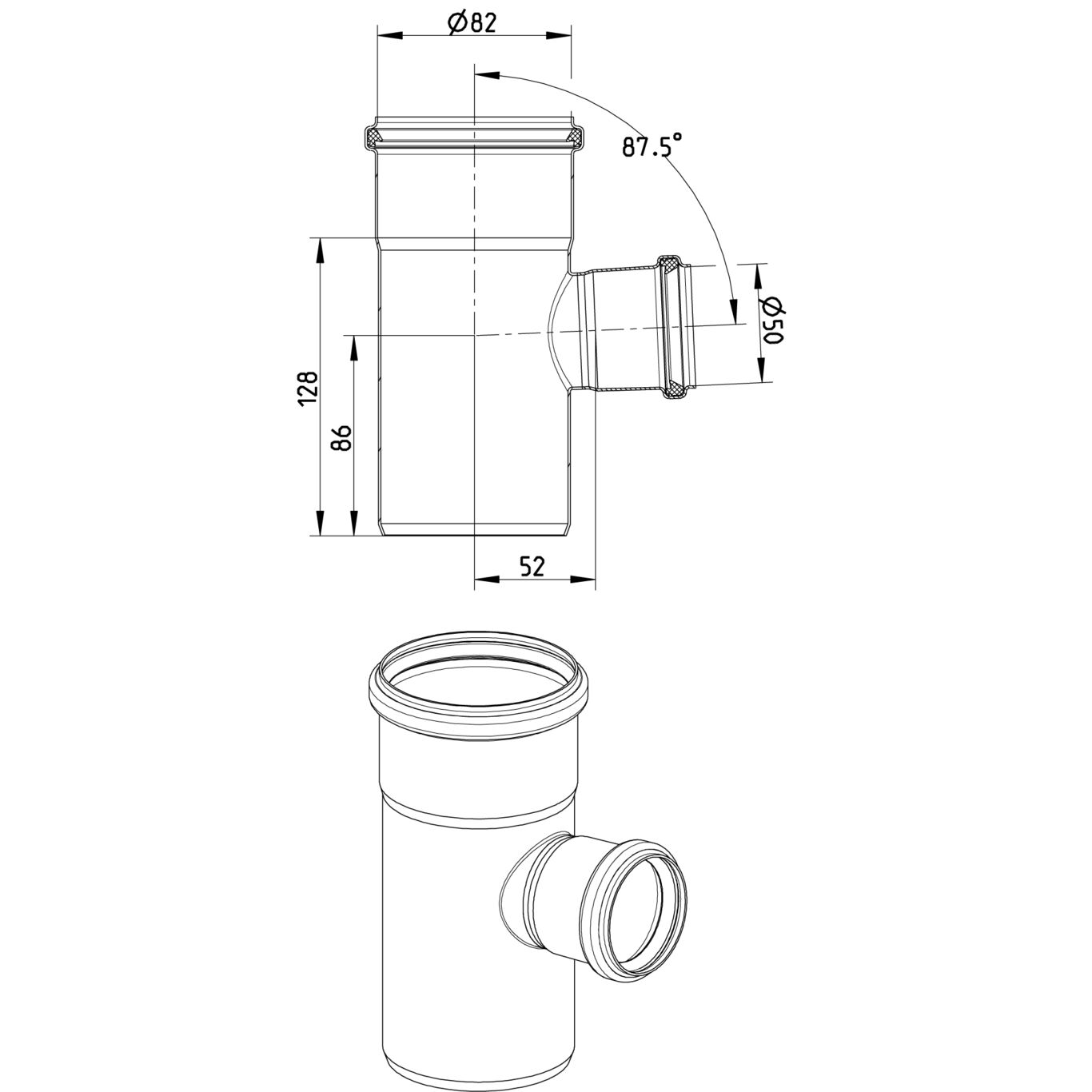

BRANCH 87.5°
-Pipe diameter: Ø82mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| All Renovation 82 products | RS82 |
| Angle (°) | 87.5 |
| Length (mm) | 128 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 3¼ |
| Outlet Diameter (mm) | 82 |
| Weight (kg) | 0,47 |
| Weight (lbs) | 1,04 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DE - TÜV Rheinland R 60178453 0001
HACCP Food Safety Programme - Australasia
TÜRK LOYDU - 25041616077231247
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings
