BRANCH 87.5° - (830.050.050)
Part Of the Series: Branch-87.5
Type no.: 830.050.050
EAN no.: 5705499401608
VVS no.: 160221050
RSK no.: 1550102
NRF no.: 2170109
LVI no.: 0241953

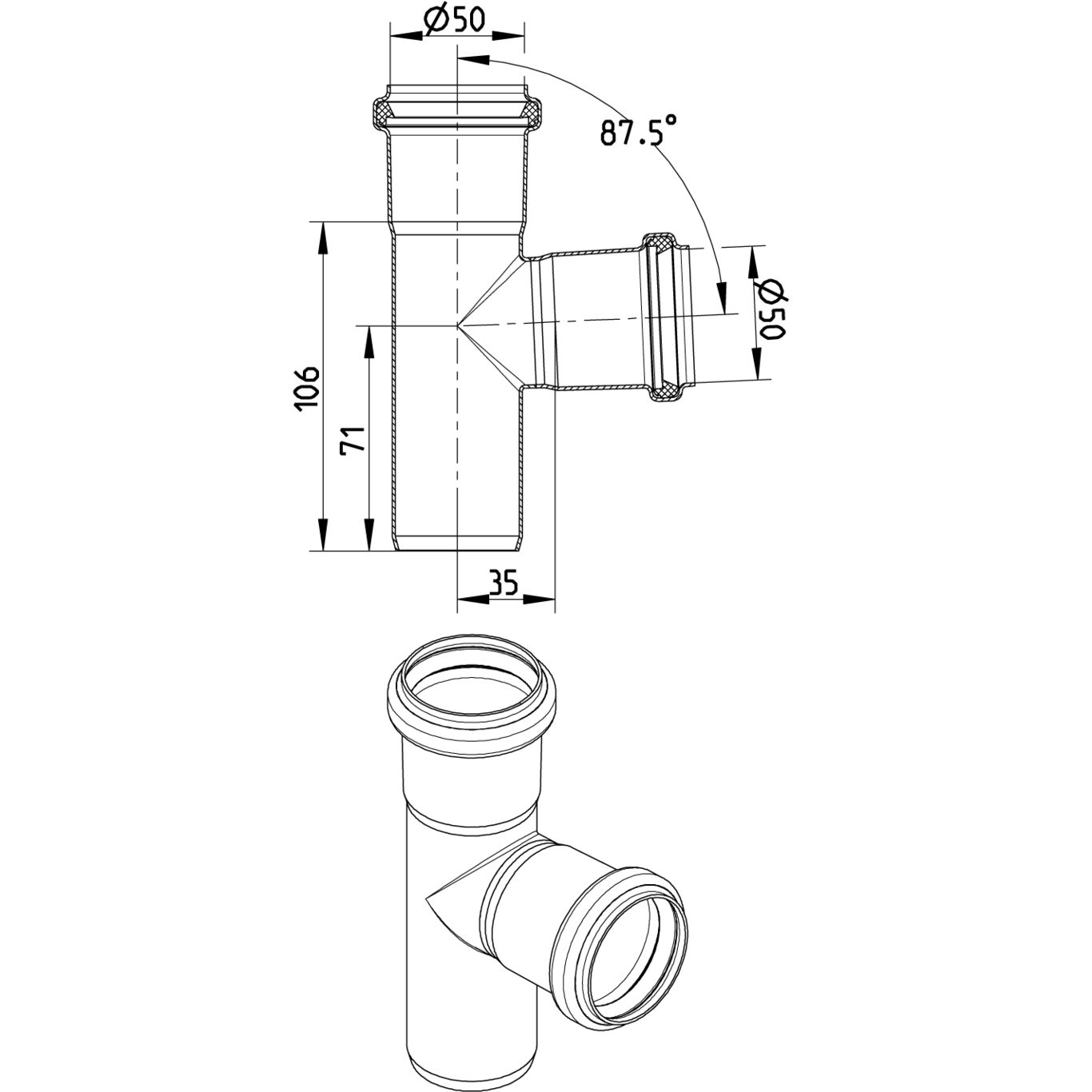

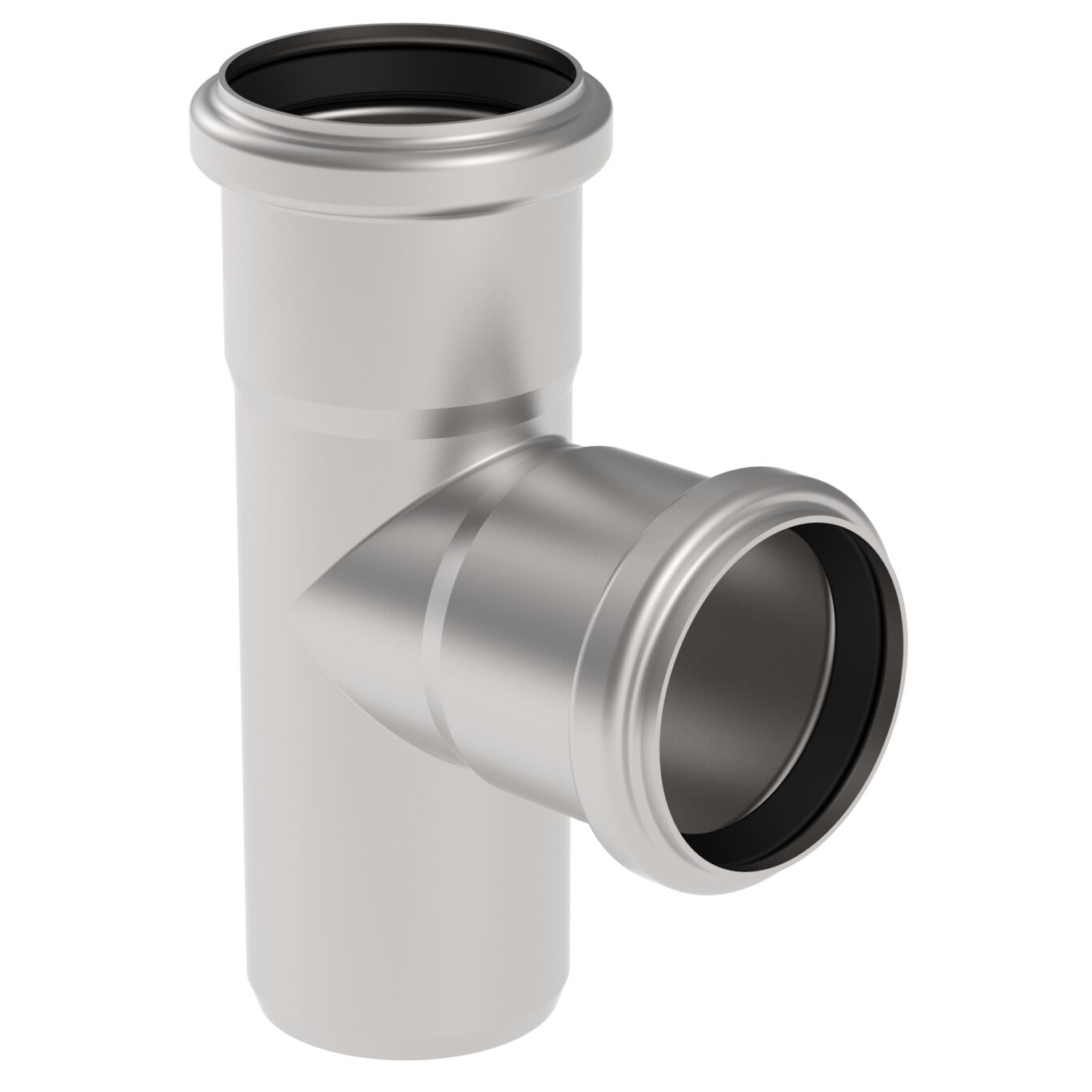

BRANCH 87.5°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 106 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,27 |
Weight (lbs) | 0,6 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia AUS - WMKT00204 - 24 NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev4, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 ABS - LD1716353-PDA Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products
