OBLIQUE BRANCH 45° - (838.160.160)
Part Of the Series: Branch-45
Type no.: 838.160.160
EAN no.: 5705499402490
VVS no.: 160224160
RSK no.: 1550115
NRF no.: 2170107
LVI no.: 0241165

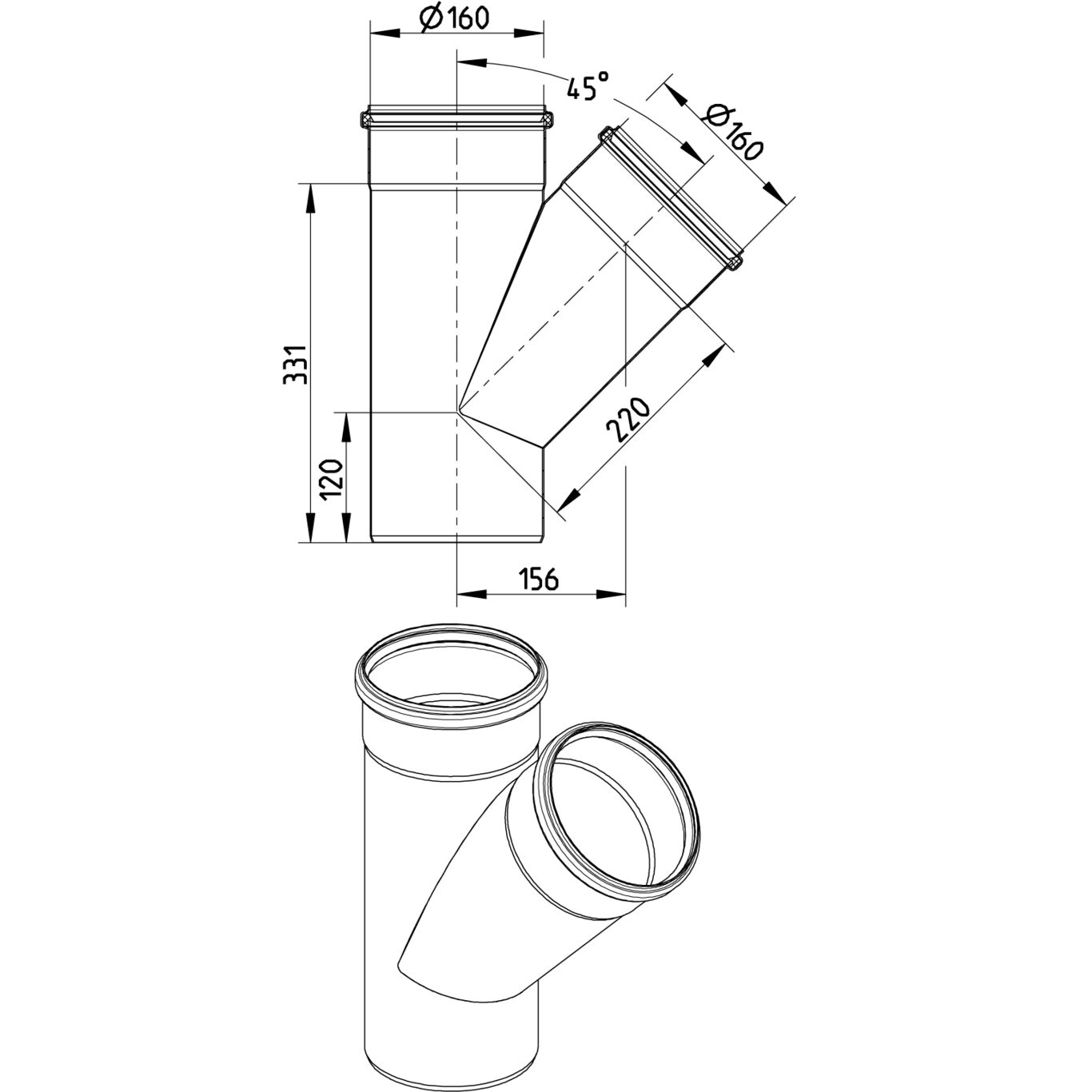

OBLIQUE BRANCH 45°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 331 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 3,04 |
Weight (lbs) | 6,7 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
FR - DTA 14.1/12-1811*V2 EuroPipe
US - IAPMO File No.3247-19
NO - 0692-22
DK - VA 2.12/19349-19
DK - VA 2.12/19350-19
AUS - WMKT00204 - 18B DNVGL - TAP0000023-rev2 MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 RS - 22.10018.262 RINA -MAC285119XG EuroPipe PL - Hygienic Certificate - All products Achilles Certificate - 25316-21 RU - 0212322 Pipes-21 Bureau Veritas, 02375-H0 Lloyds Register 92-00041 (E7) ABS - 18-LD1716353-PDA UR - 1055745
