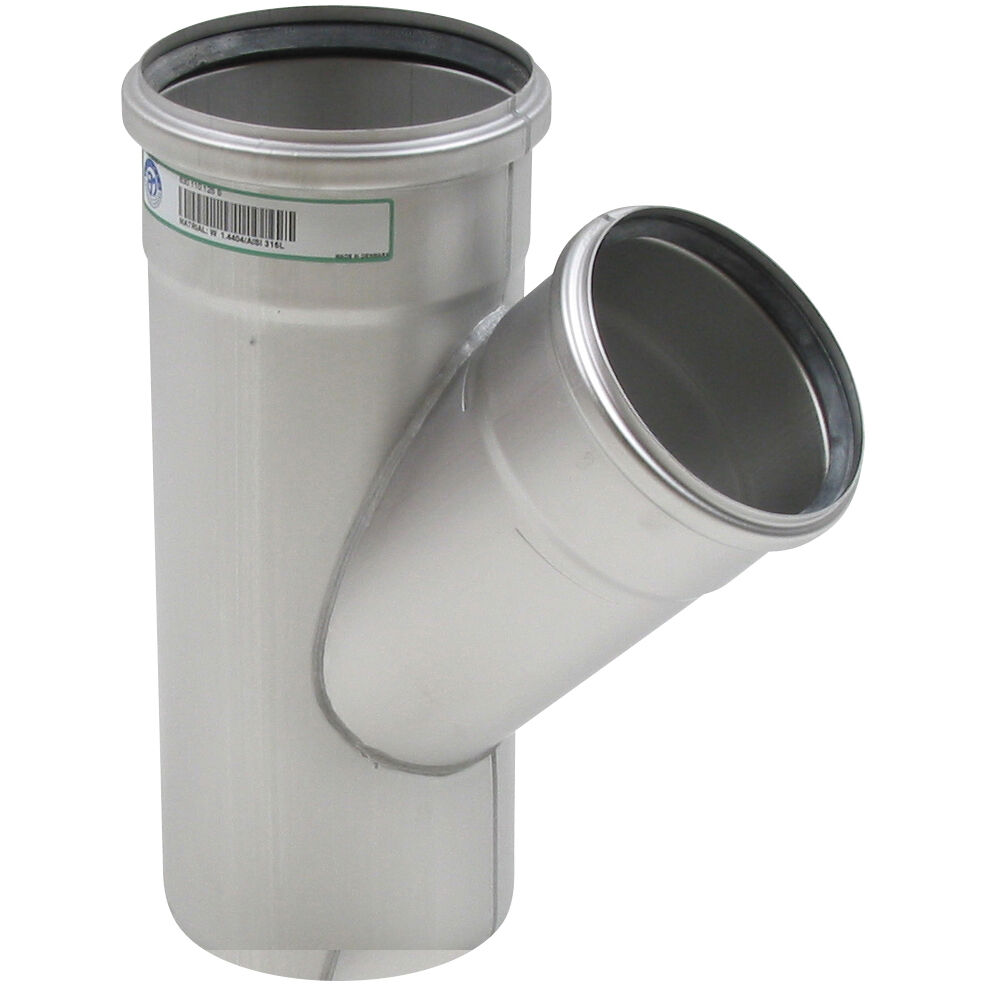

OBLIQUE BRANCH 45° - (838.110.125)
Part Of the Series: Branch-45
Type no.: 838.110.125
EAN no.: 5705499409338
VVS no.: 160224124
RSK no.: 1551534
NRF no.: 2170117
LVI no.: 0246021
OBLIQUE BRANCH 45°
-Pipe diameter: Ø125mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 250 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 5 |
Outlet Diameter (mm) | 125 |
Weight (kg) | 1,50 |
Weight (lbs) | 3,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DE - LGA Certificate 57214035 a NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Europe DK - VA 2.12/19350 RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 DNV - TAP0000023-rev4, Sanitary discharge pipes Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001
