OBLIQUE BRANCH 45° - (838.050.075 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.050.075 S
EAN no.: 5705499402384
VVS no.: 160224373
RSK no.: 1550311
NRF no.: 2170786
LVI no.: 0251155

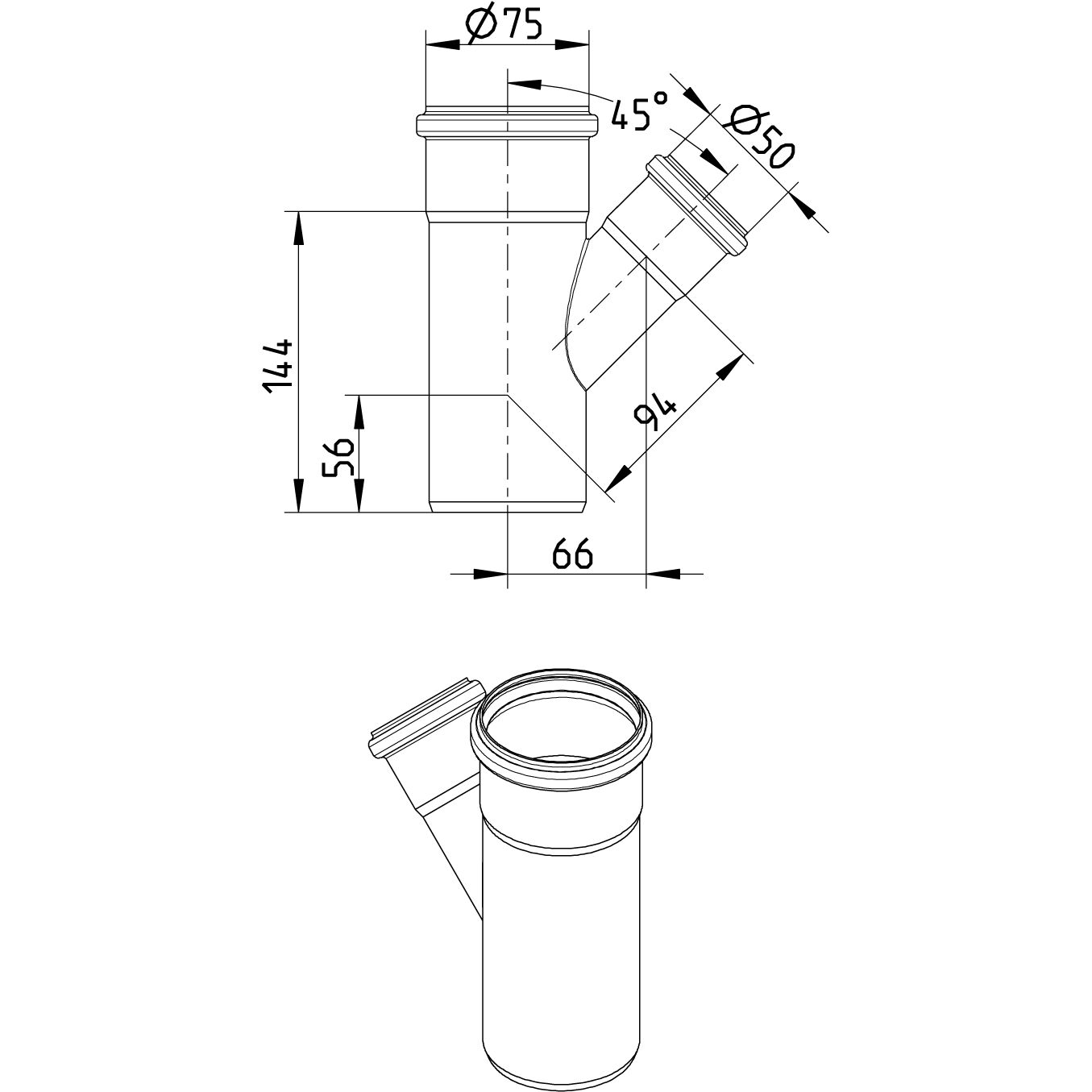

OBLIQUE BRANCH 45°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 144 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,48 |
| Weight (lbs) | 1,06 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA ABS - 23-2329630-PDA
