OBLIQUE BRANCH 45° - (838.040.050 S)
Part Of the Series: Branch-45
Type no.: 838.040.050 S
EAN no.: 5705499413021
VVS no.: 160224349
RSK no.: 1552763
NRF no.: 2172628
LVI no.: 0251152

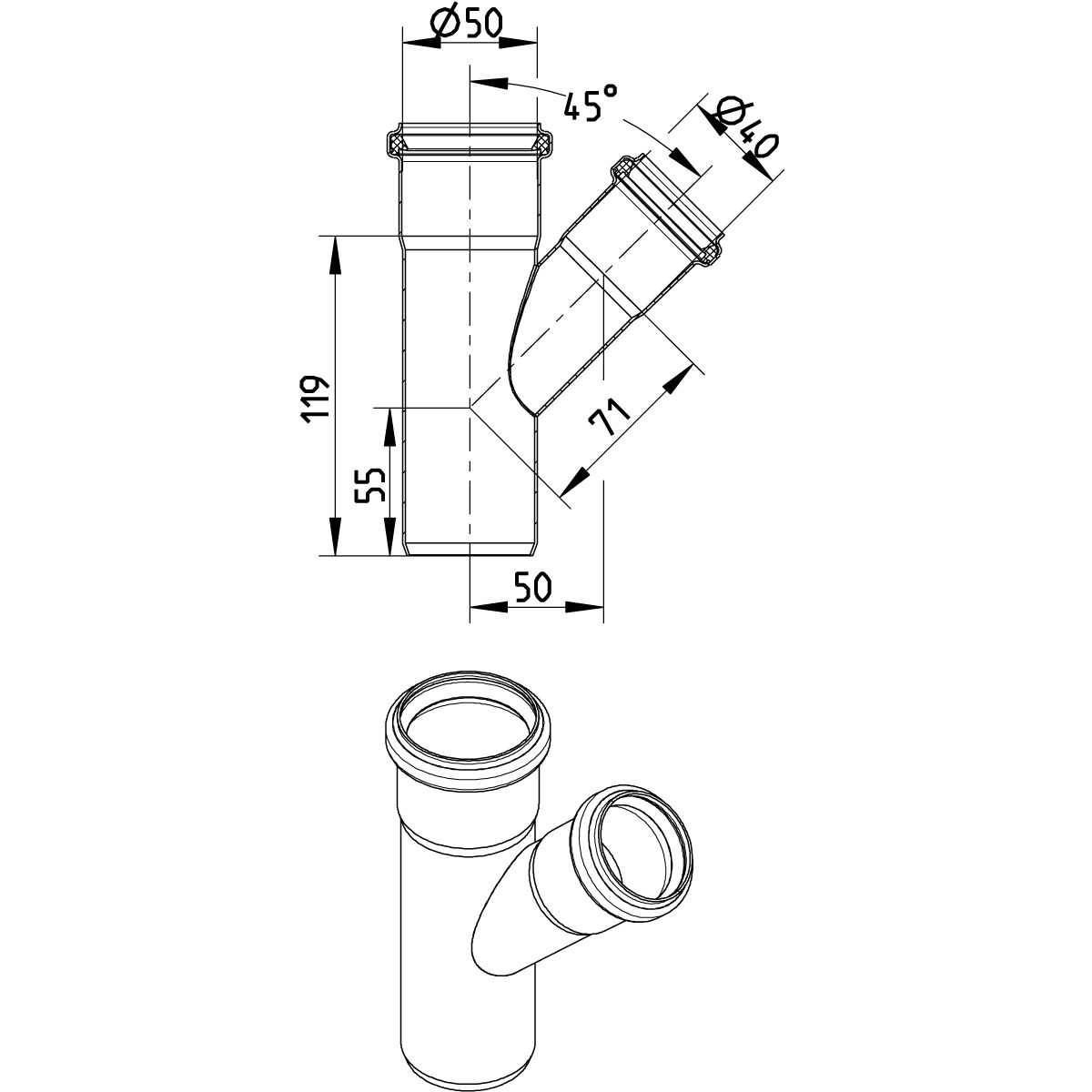

OBLIQUE BRANCH 45°
-Pipe diameter: Ø50mm. Branch diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 119 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,30 |
Weight (lbs) | 0,66 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 NO - 0692-22 EuroPipe HACCP Food Safety Programme - Europe FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe RINA -MAC285119XG EuroPipe PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001
