OBLIQUE BRANCH 45° - (838.040.040)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.040.040
EAN no.: 5705499412994
VVS no.: 160224040
RSK no.: 1552788
NRF no.: 2171208
LVI no.: 0241151

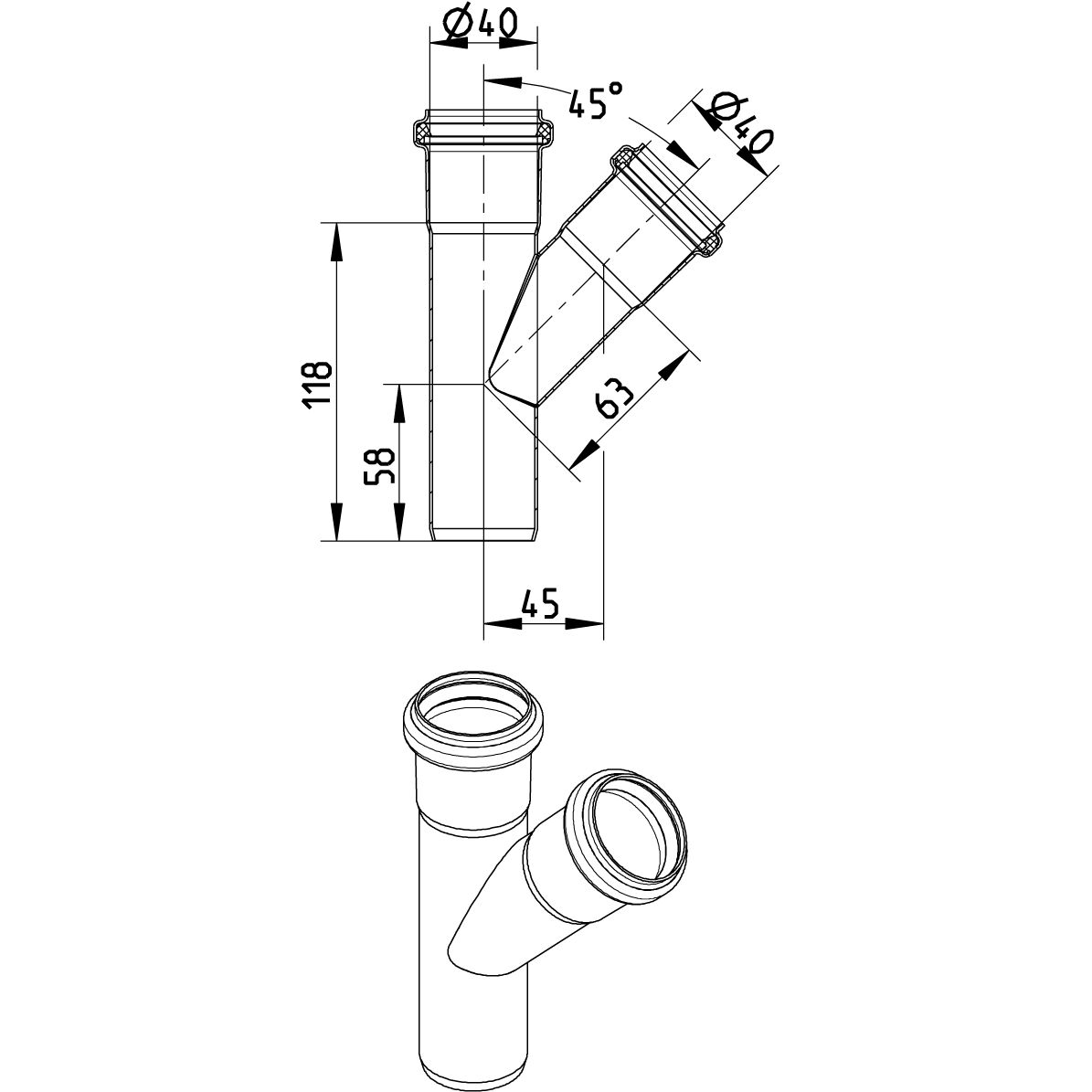

OBLIQUE BRANCH 45°
-Pipe diameter: Ø40mm. Branch diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 118 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,25 |
| Weight (lbs) | 0,55 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DE - TÜV Rheinland R 60178453 0001
Declaration of Perfomance EN1124-1-001
HACCP Food Safety Programme - Australasia
Declaration of Perfomance BS-EN1124-1-002
BLÜCHER® EuroPipe EPD
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
TÜRK LOYDU - 25041616077231247 Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Achilles Certificate - 46702 Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes
