BEND 87.5° - (820.090.250 S)

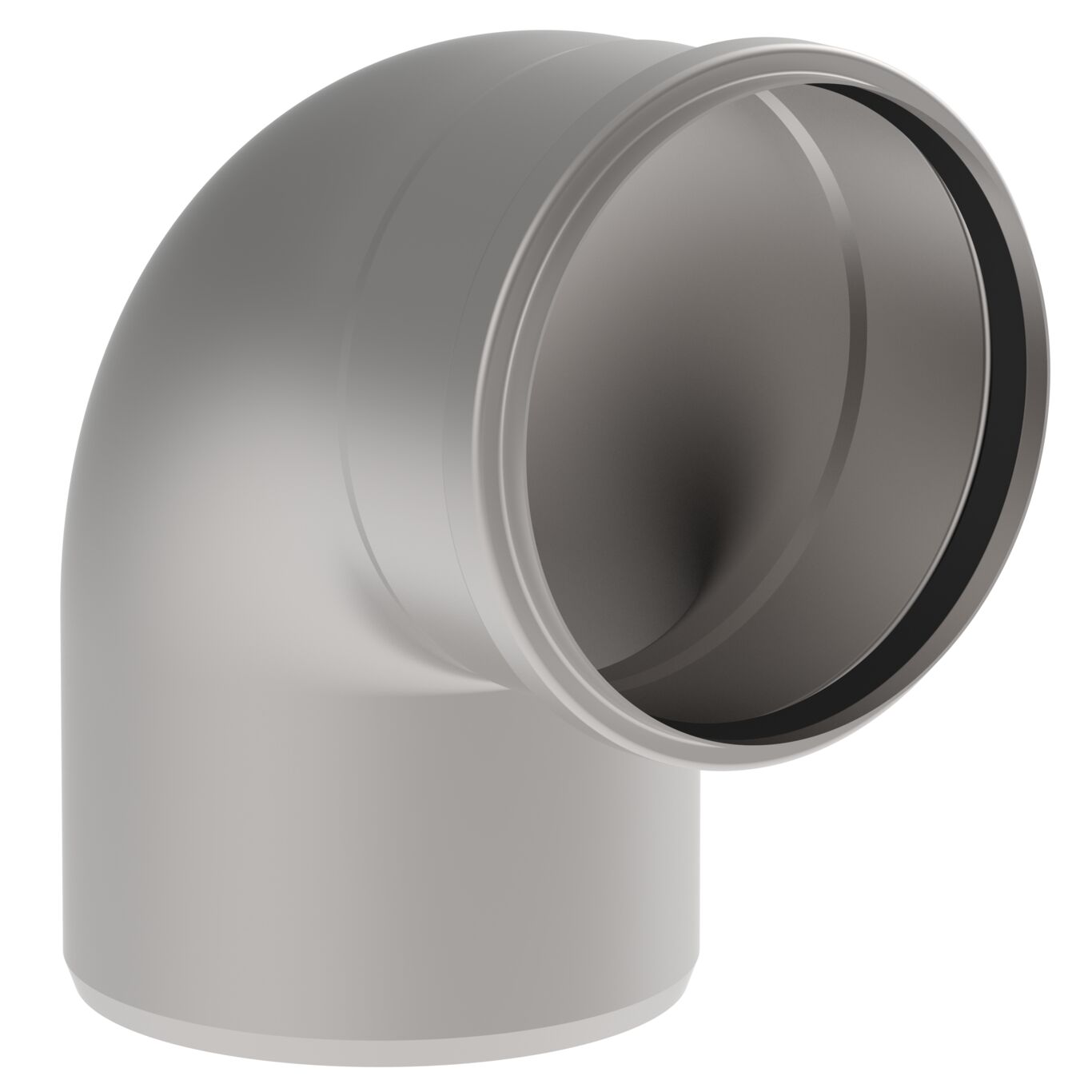

Product Image - Bend-87.5

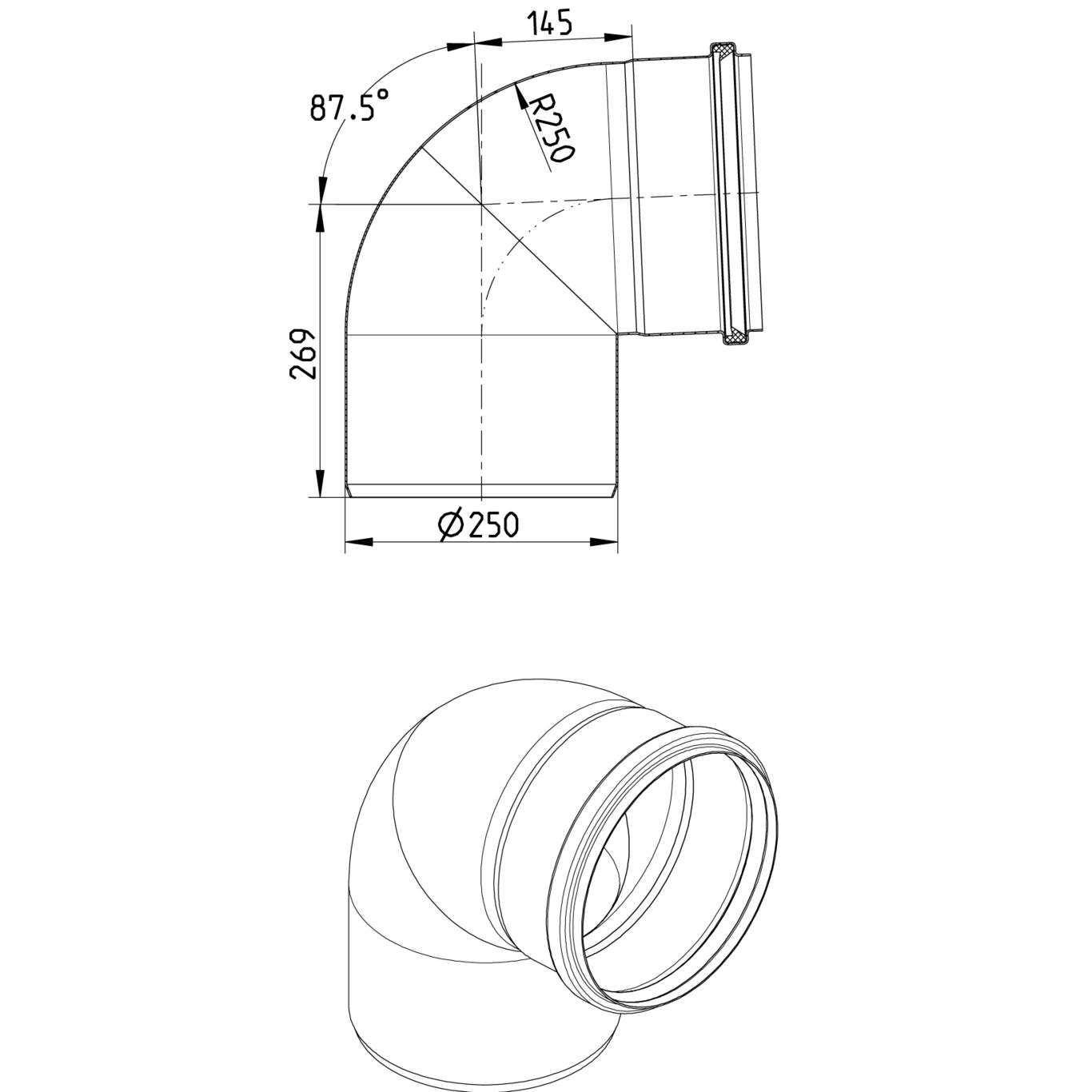

Line Drawing - Bend-87.5

Part Of the Series: Bend-87.5

Type no.: 820.090.250 S

EAN no.: 5705499414059

NRF no.: 2170855

LVI no.: 0250837

Take me to FAQ section

BEND 87.5°
-Diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	87.5
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet dia. (Inch)	10
Outlet Diameter (mm)	250
Weight (kg)	4,77
Weight (lbs)	10,52

Downloads

Approvals and standards

For approvals and standards information, please refer to the below certificates.

TÜRK LOYDU - 25041616077231247 US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe DE - TÜV Rheinland R 60178453 0001 Declaration of Perfomance EN1124-1-001 BLÜCHER® EuroPipe EPD DK - VA 2.12/19350 Declaration of Perfomance BS-EN1124-1-002 DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702 UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products

Find a Sales Representative

Find a Wholesaler/Distributor

Customer Support Access BIM Drawings

Share this Product

Product Accessories

Clamps

PRESSURE PEAK CLAMP - (847.001.250)

PIPE JOINT CLAMP - (847.250.250)

Oil and Lubricants

GLIDEX SILICONE LUBRICANT - (007.200.040)

JOINTING LUBRICANT 0.5 L - (007.100.050 SIL)

JOINTING LUBRICANT 0.5 L - (007.100.050)

Pipe Hangers

PIPE HANGER WITH EPDM - (895.403.250 S)

Plugs

SOCKET PLUG - (844.000.250 S)

Sealing Rings

FPM LIP SEALING GREEN, Ø250MM - (801.FPM.250)

NBR SEAL BLACK/YELLOW - (801.NBR.250)

EPDM LIP SEALING BLACK, Ø250MM - (801.EPDM.250)

Tools

ASSEMBLY TOOL - (806.000.250)

DIMPLING JAWS - (800.200.001)
