BEND 87.5° - (820.090.050 S)
Part Of the Series: Bend-87.5
Type no.: 820.090.050 S
EAN no.: 5705499401394
VVS no.: 160201350
RSK no.: 1550285
NRF no.: 2170764
LVI no.: 0250832

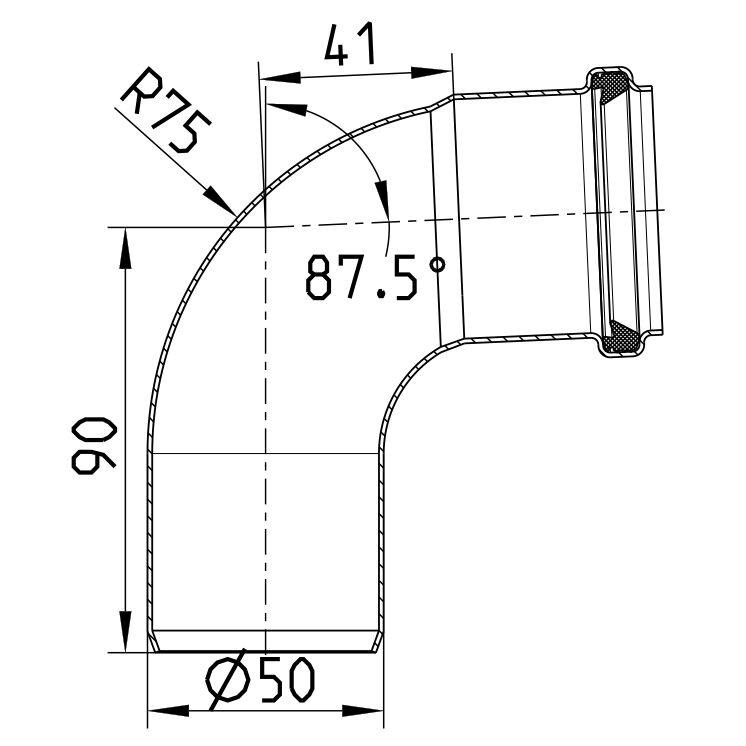

BEND 87.5°
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,21 |
Weight (lbs) | 0,46 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Australasia ABS - LD1716353-PDA DNV - TAP0000023-rev4, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22
