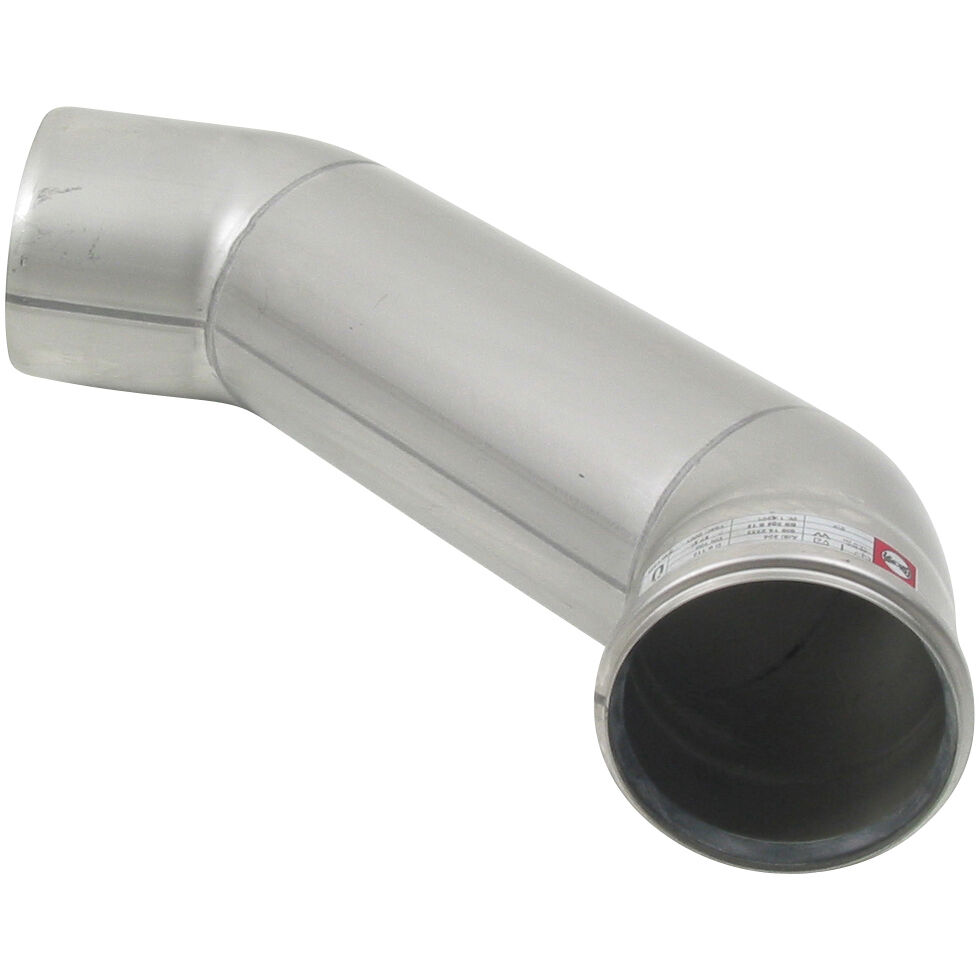

BEND, LONG 87.5°, 250 MM - (821.090.110 S)
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.110 S
EAN no.: 5705499401479
VVS no.: 160211410
RSK no.: 1550399
NRF no.: 2172541
LVI no.: 0250854

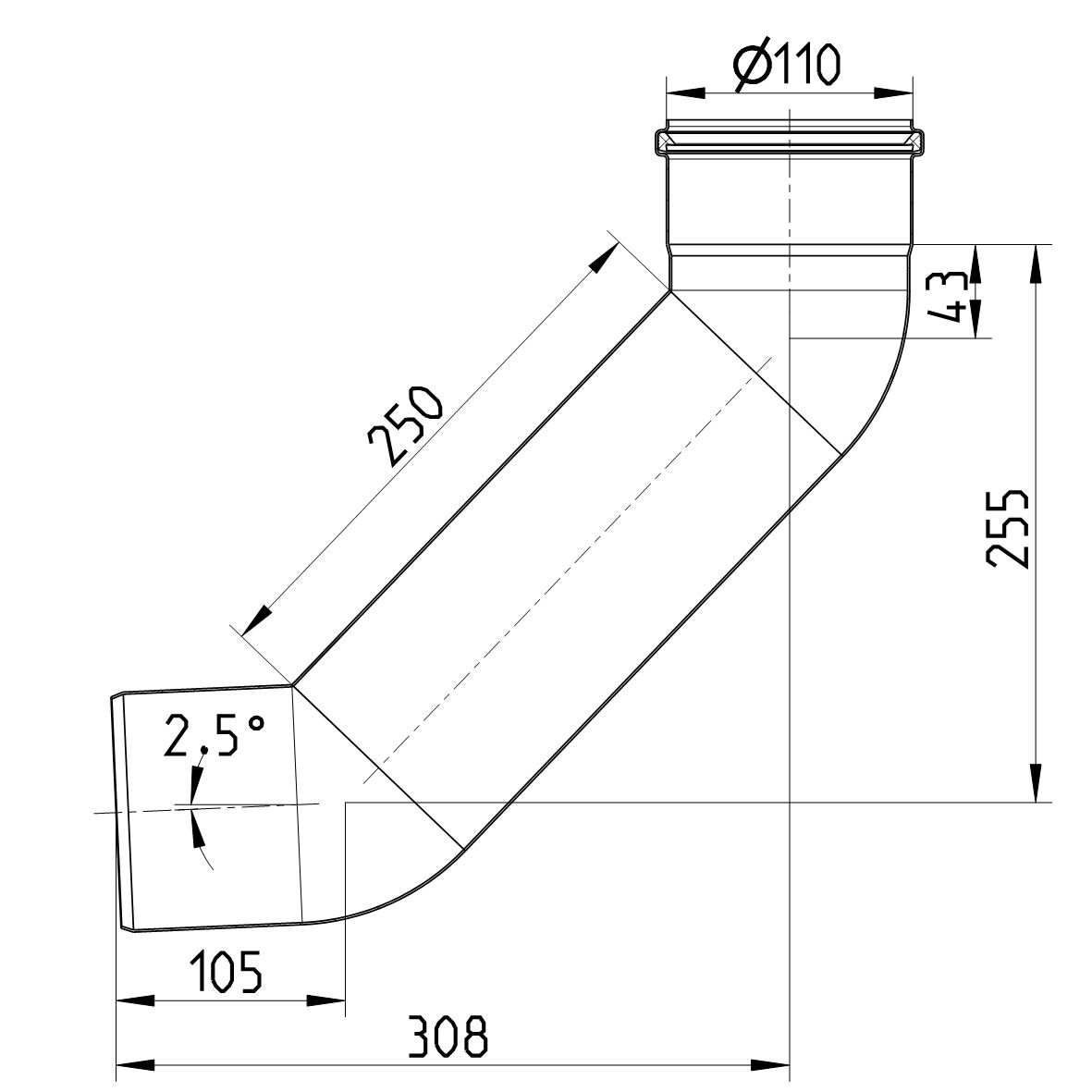

BEND, LONG 87.5°, 250 MM
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 255 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 1,61 |
Weight (lbs) | 3,55 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Australasia AUS - WMKT00204 - 24 DK - VA 2.12/19350 DK - VA 2.12/19349 EuroPipe DS432 MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev4, Sanitary discharge pipes Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA Achilles Certificate - 46702-22
