BEND, LONG 87.5°, 250 MM - (821.090.110)
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.110
EAN no.: 5705499401462
VVS no.: 160211110
RSK no.: 1550083
NRF no.: 2172318
LVI no.: 0240854

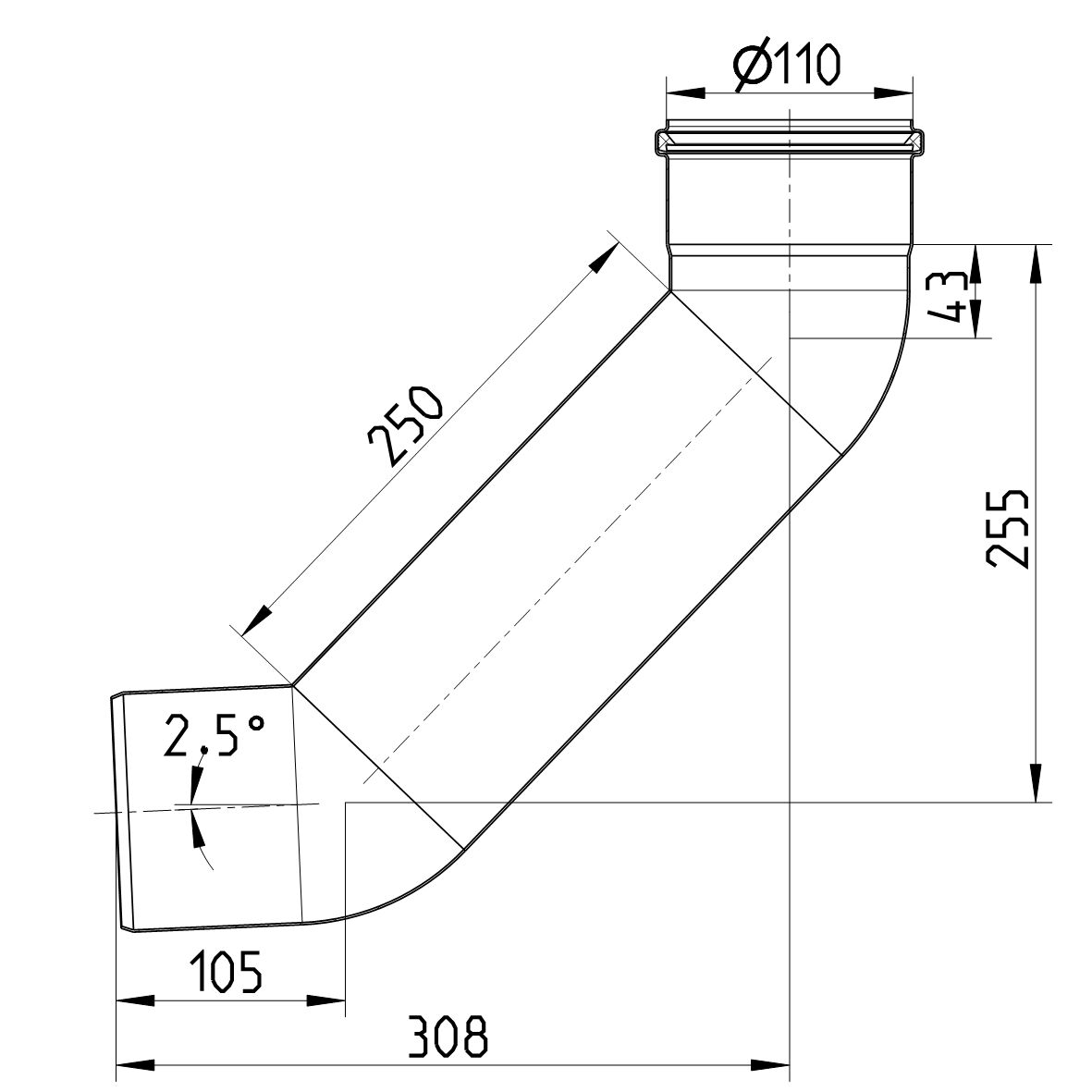

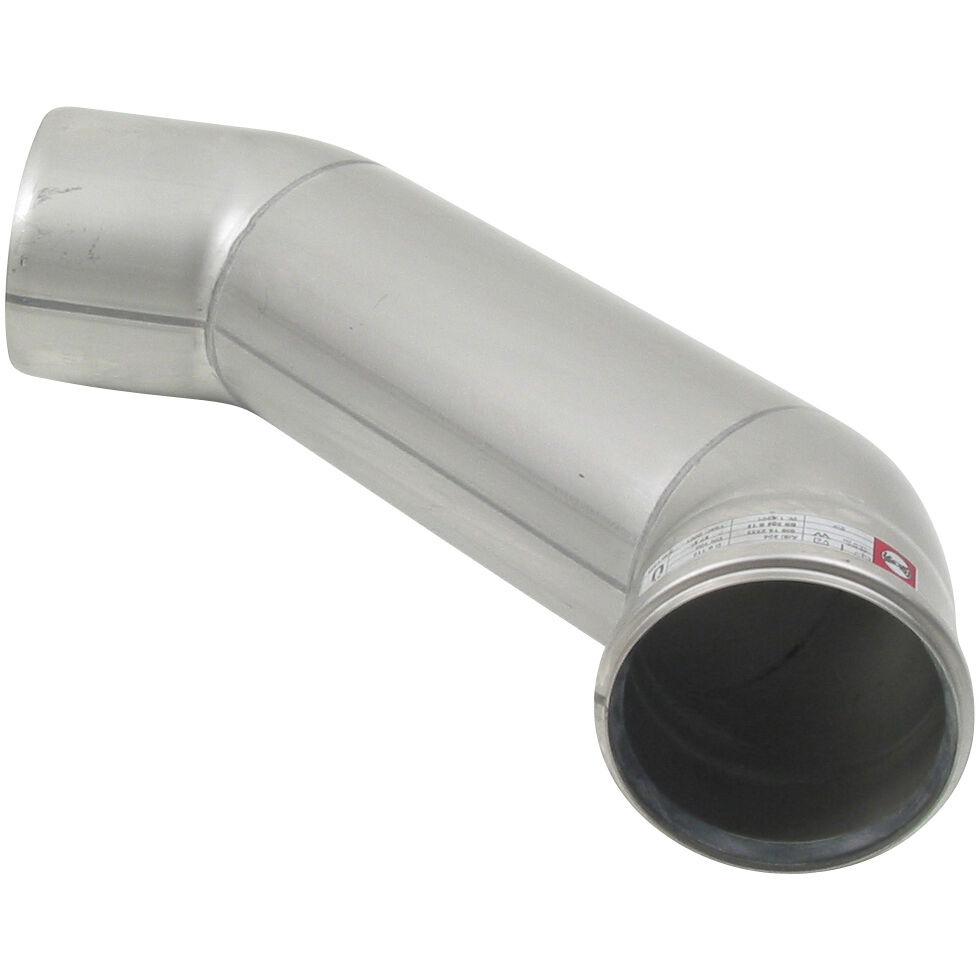

BEND, LONG 87.5°, 250 MM
-Diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 255 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 1,61 |
Weight (lbs) | 3,55 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia DK - VA 2.12/19350 DE - LGA Certificate 57214035 a NO - 0692-22 EuroPipe US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe DK - VA 2.12/19349 EuroPipe DS432 AUS - WMKT00204 - 24 KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev4, Sanitary discharge pipes Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA ABS - LD1716353-PDA
