BEND, LONG 87.5°, 250 MM - (821.090.050 S)
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.050 S
EAN no.: 5705499408768
RSK no.: 1550284
NRF no.: 2172538
LVI no.: 0250852

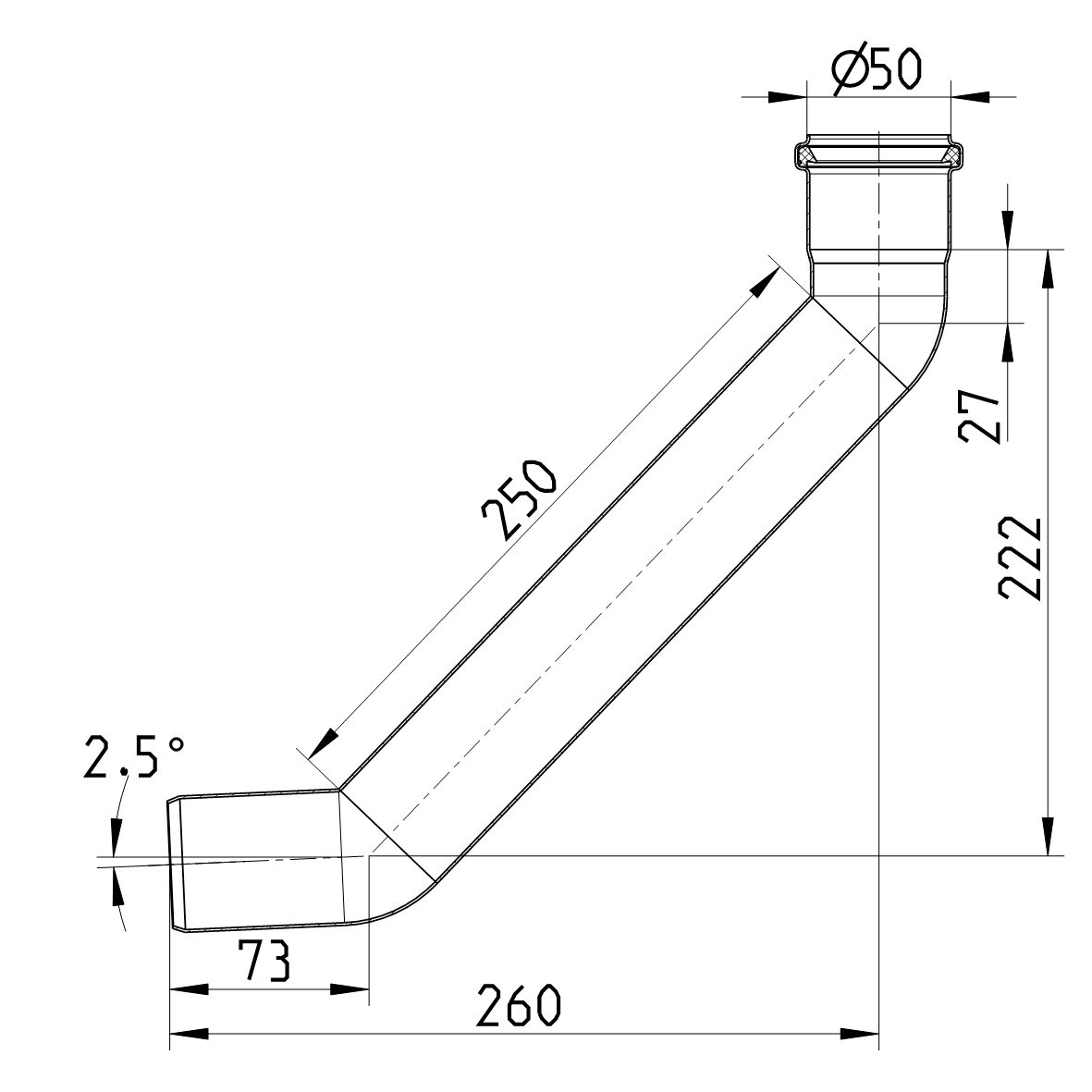

BEND, LONG 87.5°, 250 MM
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 221 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,50 |
Weight (lbs) | 1,1 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe AUS - WMKT00204 - 24 US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA PL - Hygienic Certificate - All Products DNV - TAP0000023-rev4, Sanitary discharge pipes
