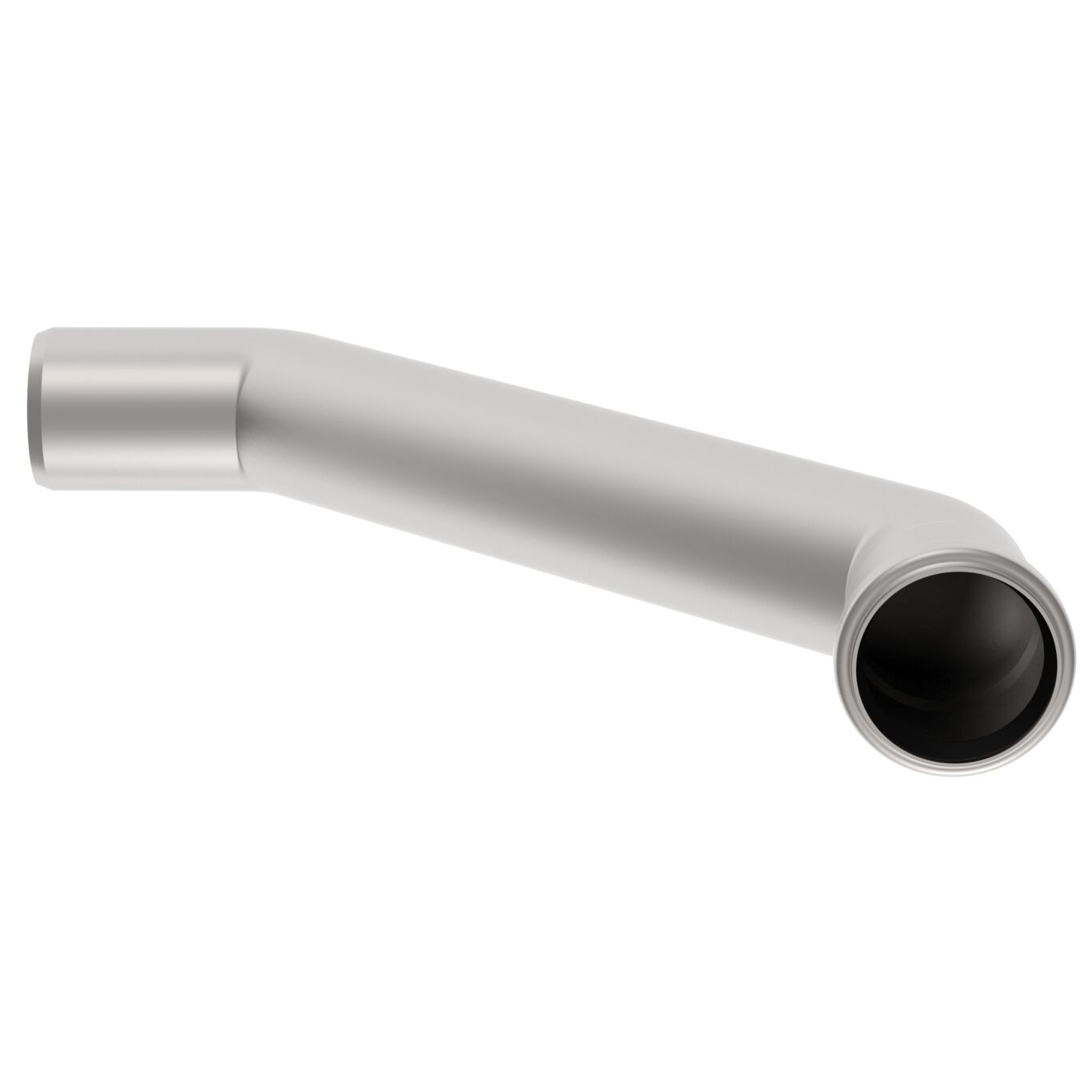

BEND, LONG 87.5°, 250 MM - (821.090.050)
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.050
EAN no.: 5705499408751
RSK no.: 1550080
NRF no.: 2172316
LVI no.: 0240852

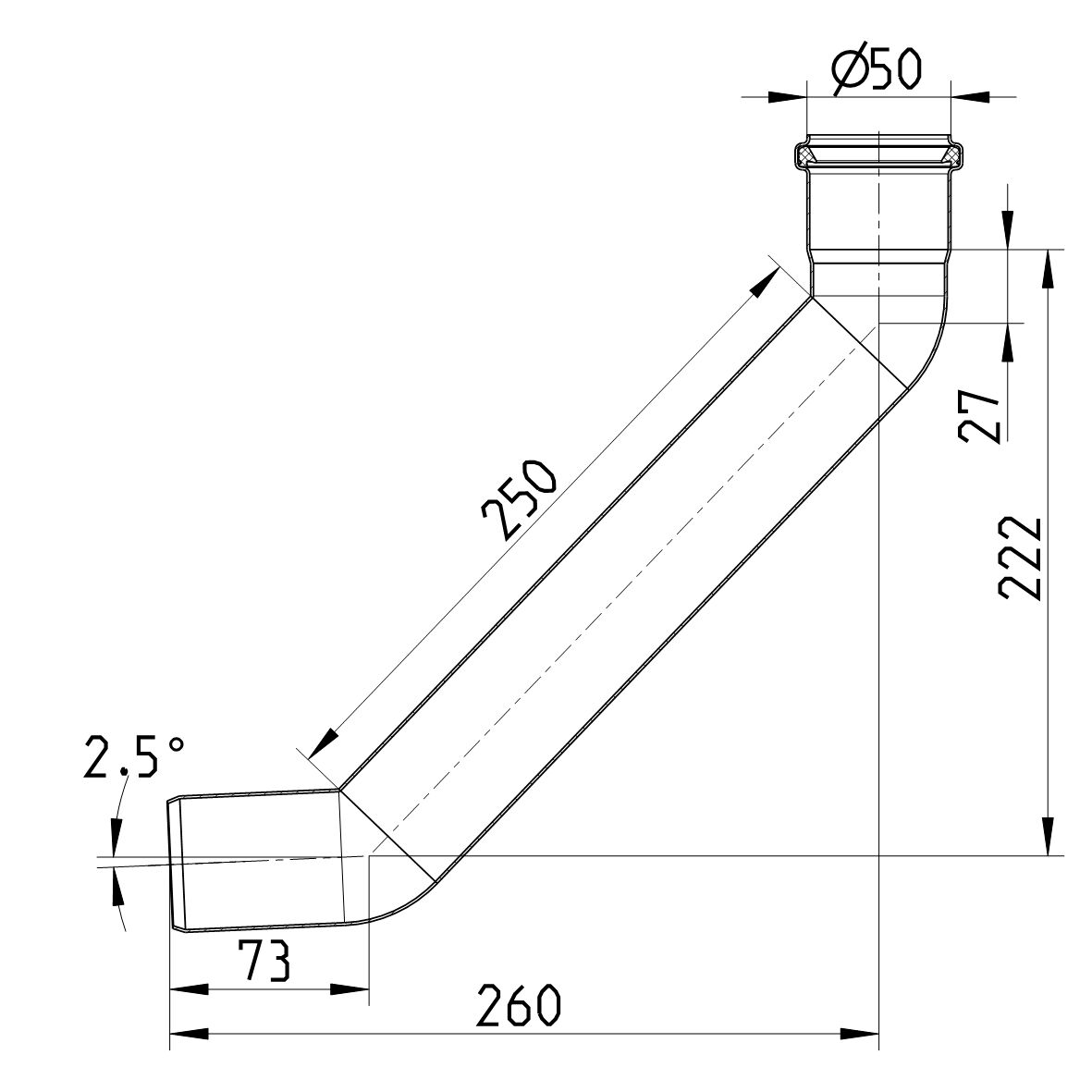

BEND, LONG 87.5°, 250 MM
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 221 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,50 |
Weight (lbs) | 1,1 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe DE - LGA Certificate 57214035 a US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 AUS - WMKT00204 - 24 HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev4, Sanitary discharge pipes Achilles Certificate - 46702-22 ABS - LD1716353-PDA Lloyds Register LR22419510TA
