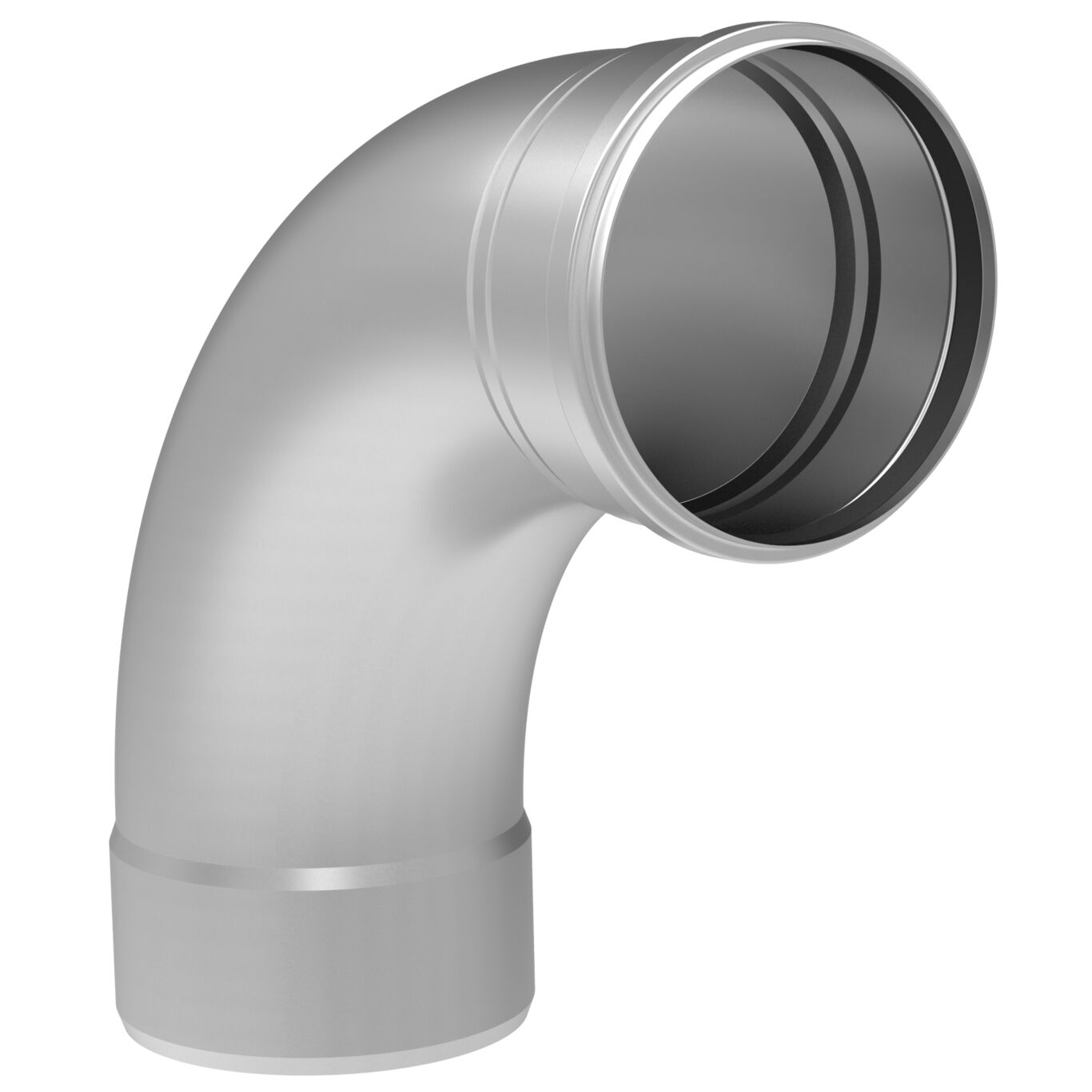

BEND, LARGE RADIUS 87.5° - (825.090.315 S)
×
![]()
Part Of the Series: Bend-87.5-large radius
Type no.: 825.090.315 S
EAN no.: 5705499413847
VVS no.: 160201615
RSK no.: 1554578
NRF no.: 2172556
LVI no.: 0256021

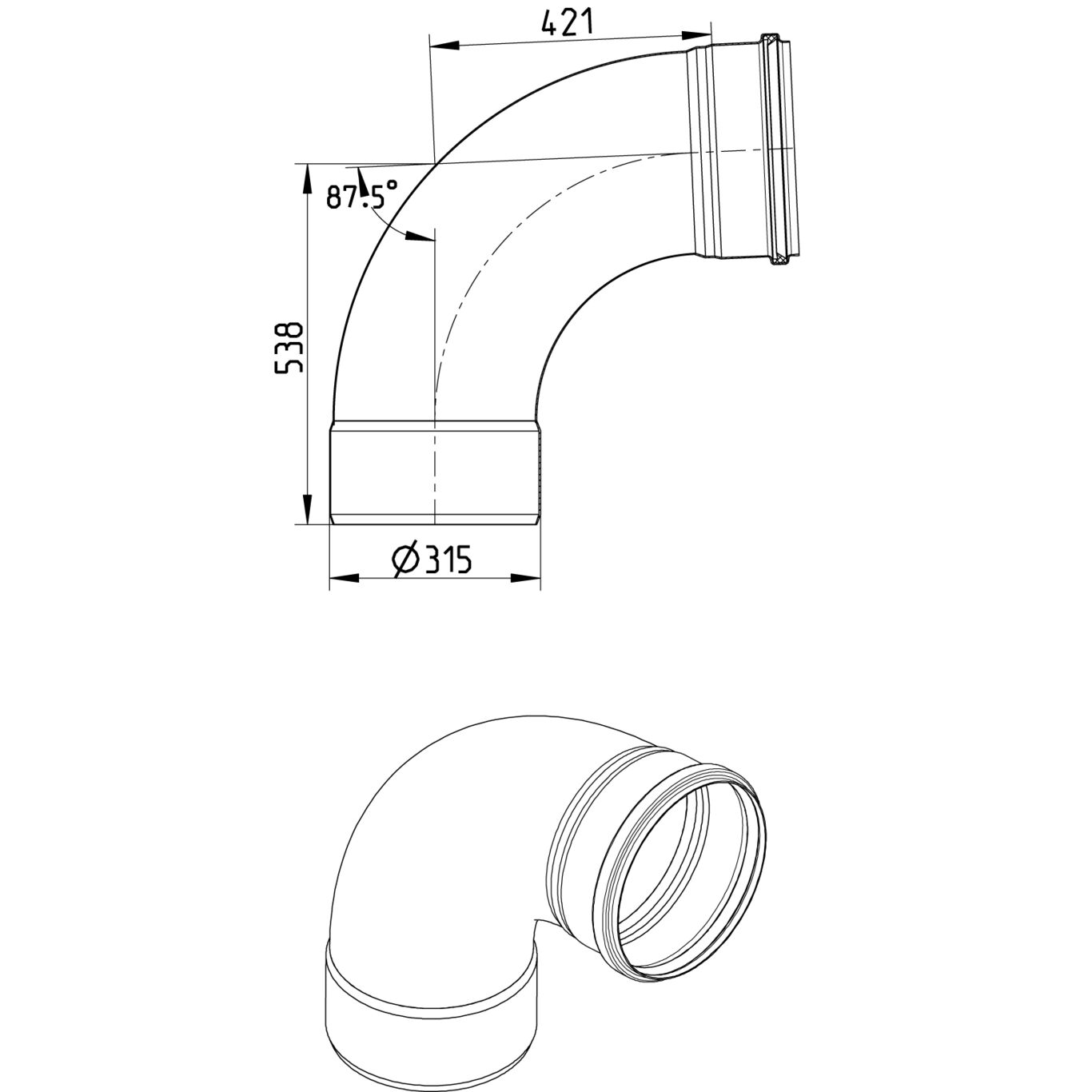

BEND, LARGE RADIUS 87.5°
-Diameter: Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 12 |
| Outlet Diameter (mm) | 315 |
| Weight (kg) | 15,78 |
| Weight (lbs) | 34,79 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
BLÜCHER® EuroPipe EPD
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
Declaration of Perfomance EN1124-1-001
Declaration of Perfomance BS-EN1124-1-002
TÜRK LOYDU - 25041616077231247 PL - Hygienic Certificate - All Products Achilles Certificate - 46702
