BEND 87.5° WITH ACCESS - (822.090.110)
×
![]()
Part Of the Series: Bend-87.5-access
Type no.: 822.090.110
EAN no.: 5705499401523
NRF no.: 2172323

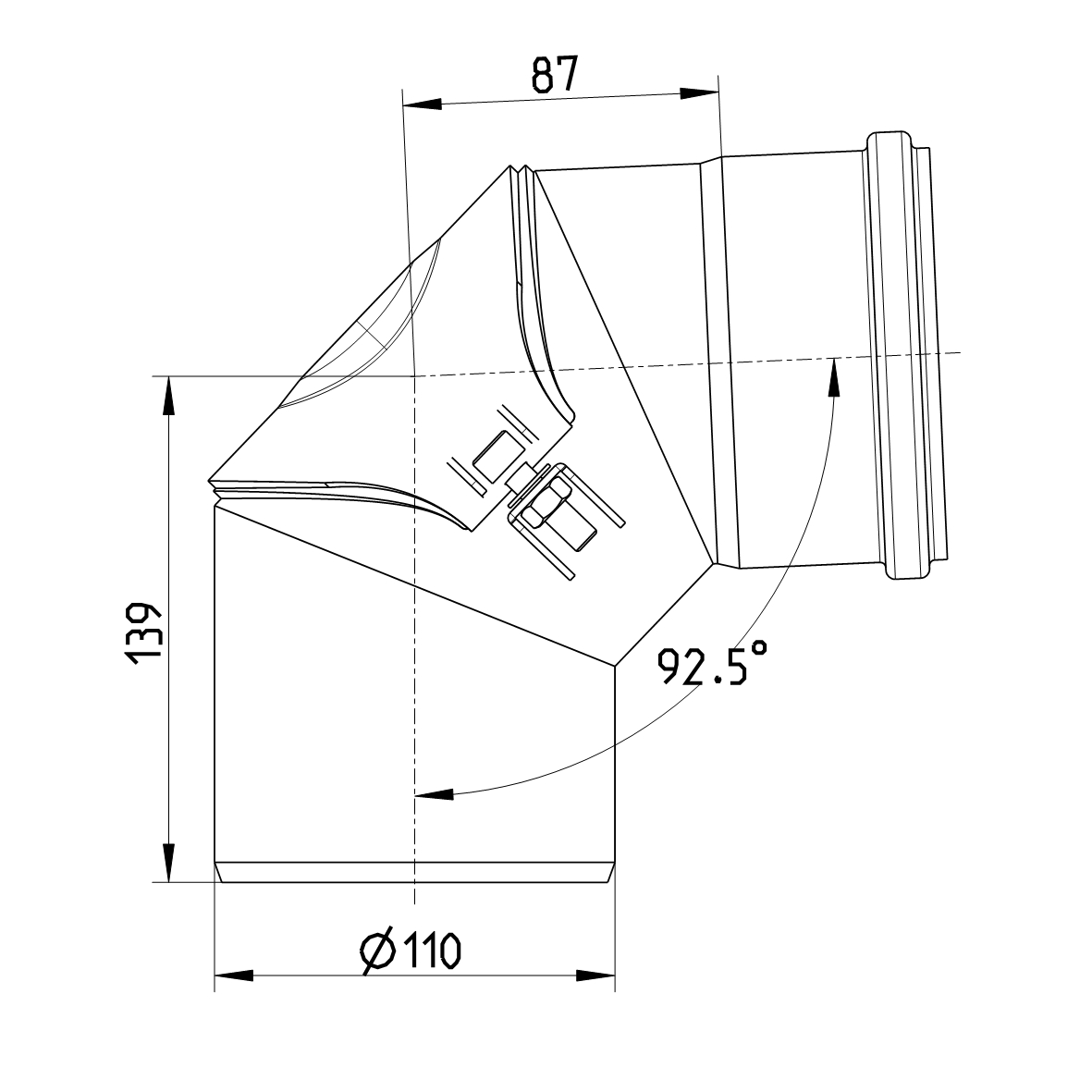

BEND 87.5° WITH ACCESS
-Diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| GWP total Co2 eq. for A1-A3 per product | 3,39kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,97 |
| Weight (lbs) | 2,14 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
TÜRK LOYDU - 25041616077231247
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance BS-EN1124-1-002
Declaration of Perfomance EN1124-1-001
BLÜCHER® EuroPipe EPD
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 RINA -MAC320524XG EuroPipe
