BEND 87.5° WITH ACCESS - (822.090.050 S)

822.090.050

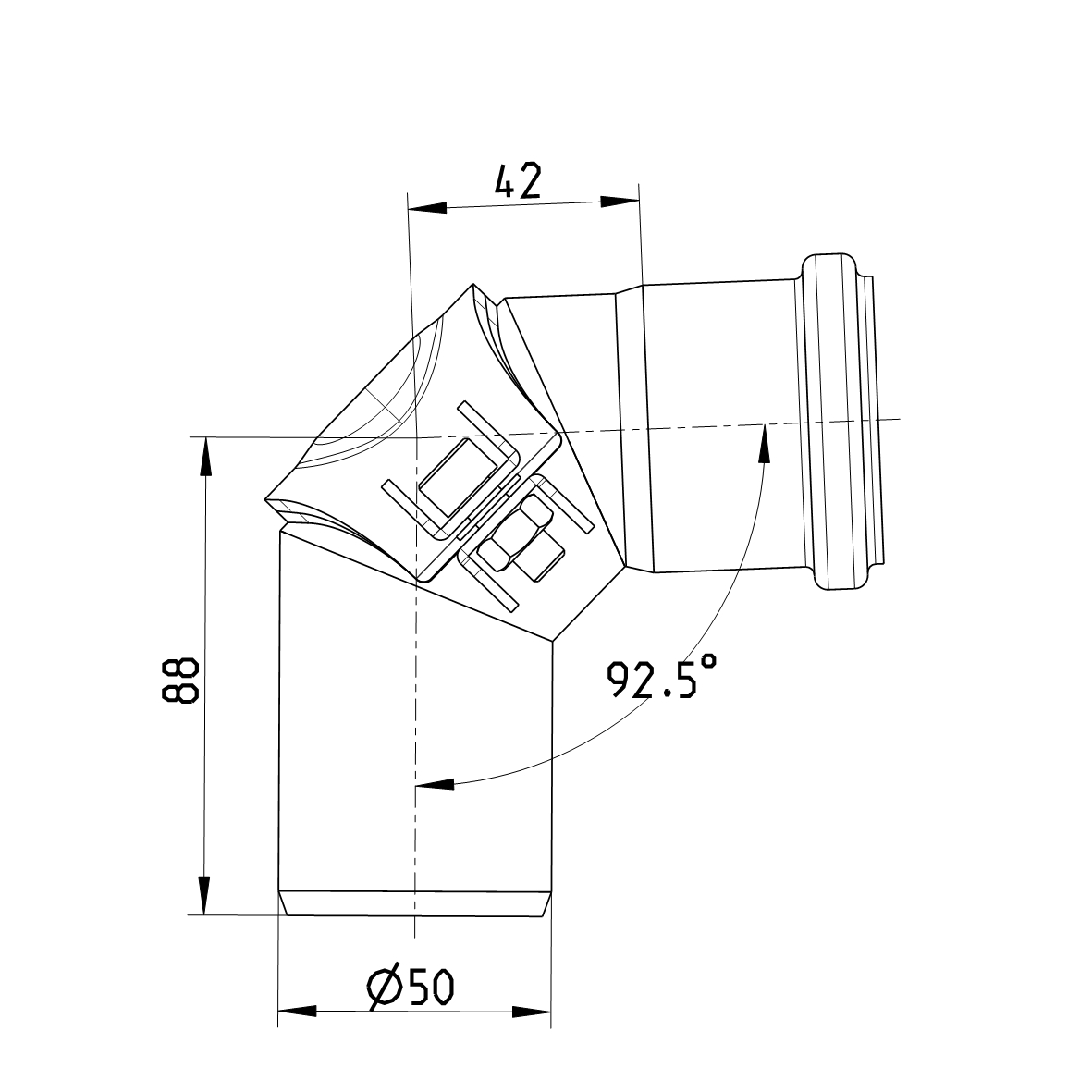

822_090_050_DIM

Part Of the Series: Bend-87.5-access

Type no.: 822.090.050 S

EAN no.: 5705499001983

Take me to FAQ section

BEND 87.5° WITH ACCESS
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	50
Weight (kg)	0,38

Downloads
- Dimensions of socket and spigot
- Maintenance Manual - BLÜCHER® EuroPipe

Approvals and standards

For approvals and standards information, please refer to the below certificates.

DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 PL - Hygienic Certificate - All Products RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes
