BEND 45° - (820.045.200 S)
Part Of the Series: Bend-45
Type no.: 820.045.200 S
EAN no.: 5705499414011
VVS no.: 160204500
NRF no.: 2170878
LVI no.: 0250686

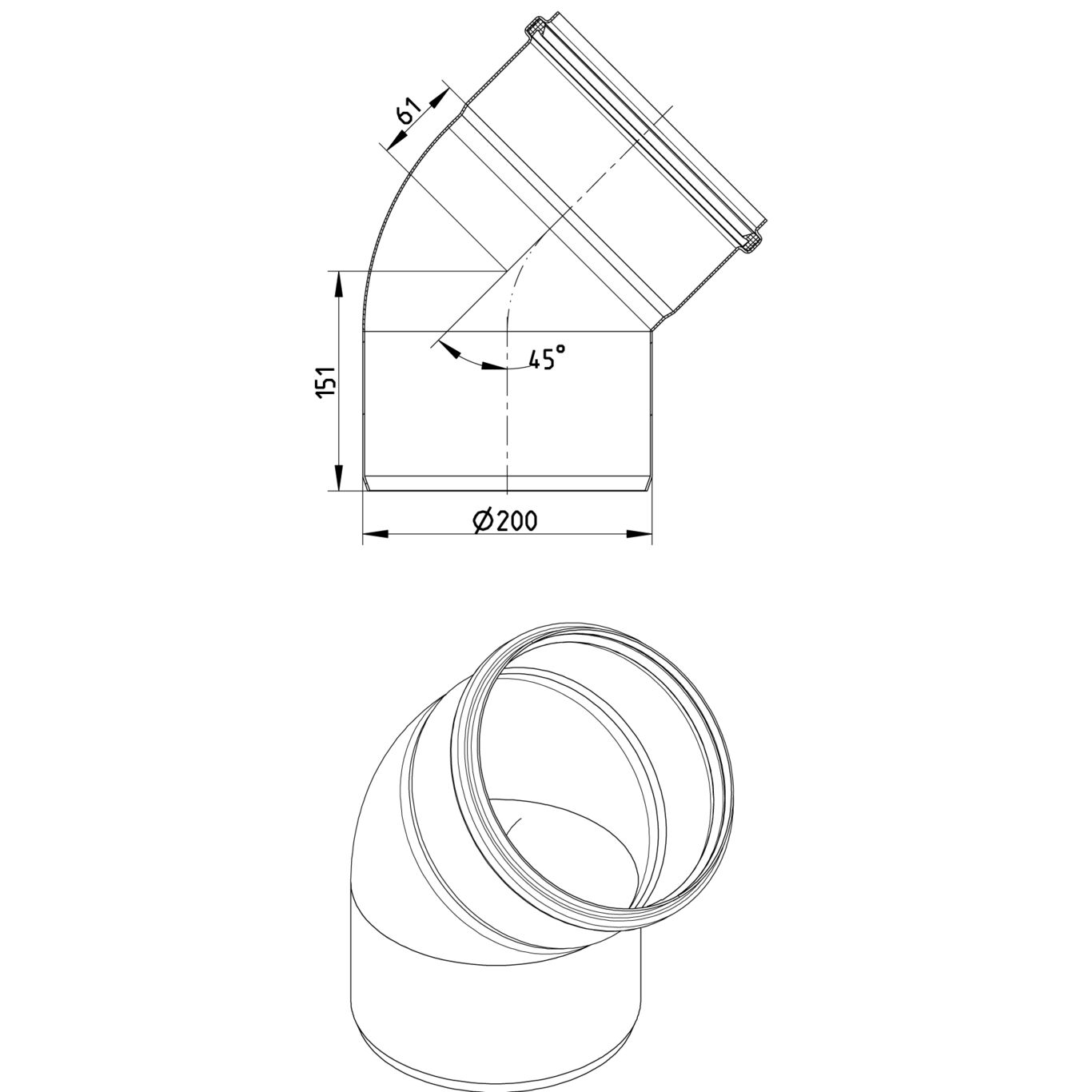

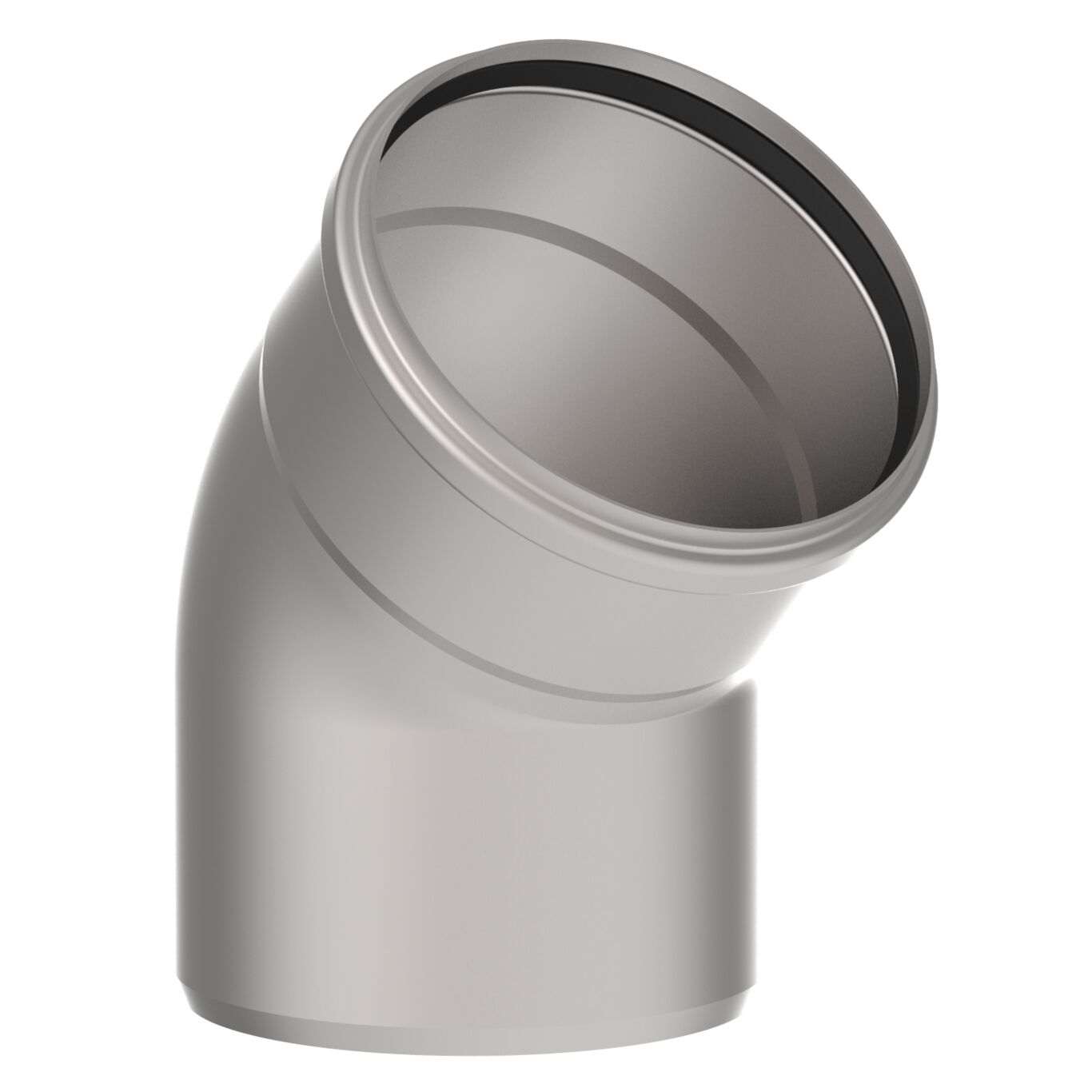

BEND 45°
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 8 |
Outlet Diameter (mm) | 200 |
Weight (kg) | 2,38 |
Weight (lbs) | 5,25 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe DE - LGA Certificate 57214035 a DK - VA 2.12/19350 US - IAPMO File No.3247-EuroPipe KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev4, Sanitary discharge pipes ABS - LD1716353-PDA Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe
