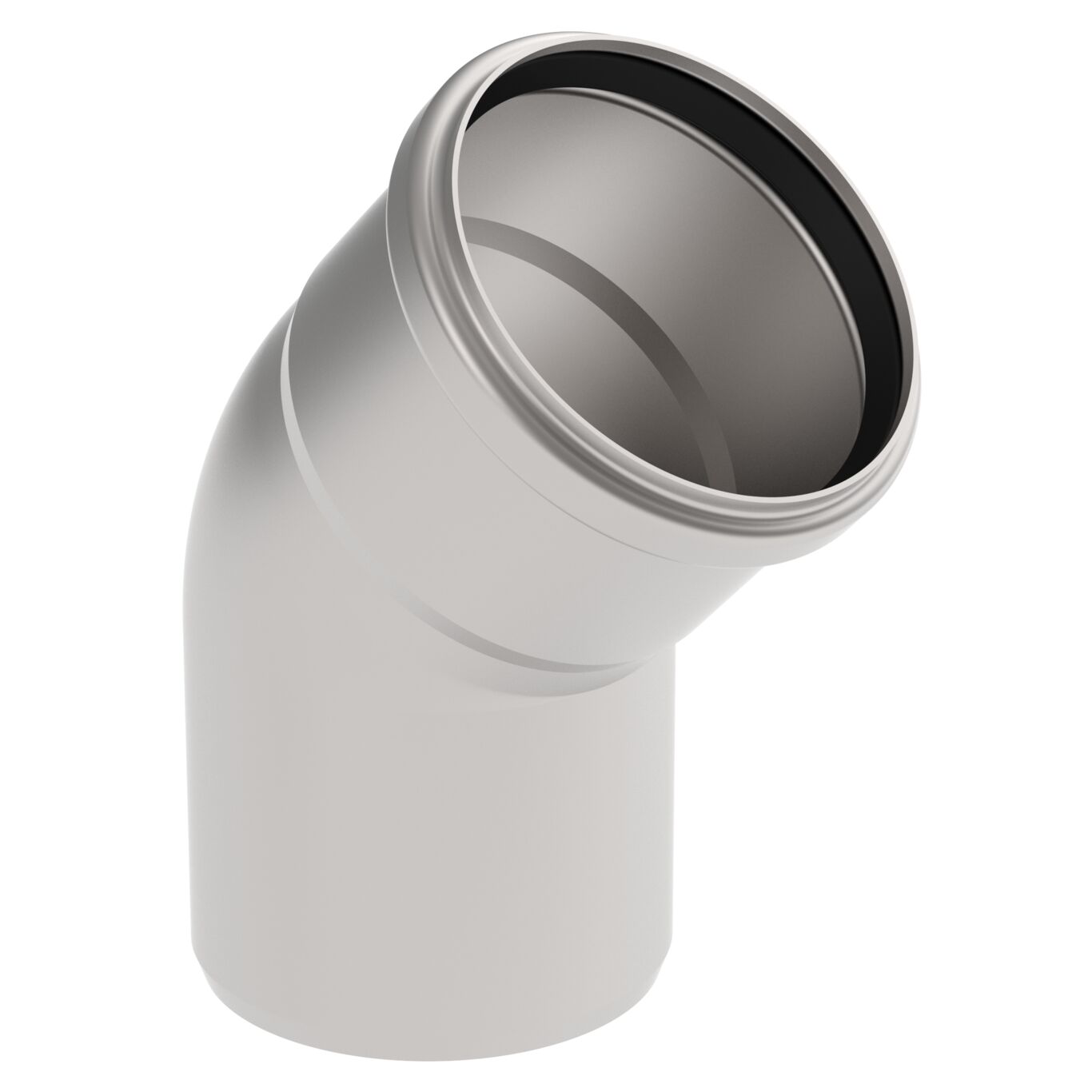

BEND 45° - (820.045.082)
×
![]()
Part Of the Series: Bend-45
Type no.: 820.045.082
EAN no.: 5705499411850
VVS no.: 160205082
NRF no.: 2172312

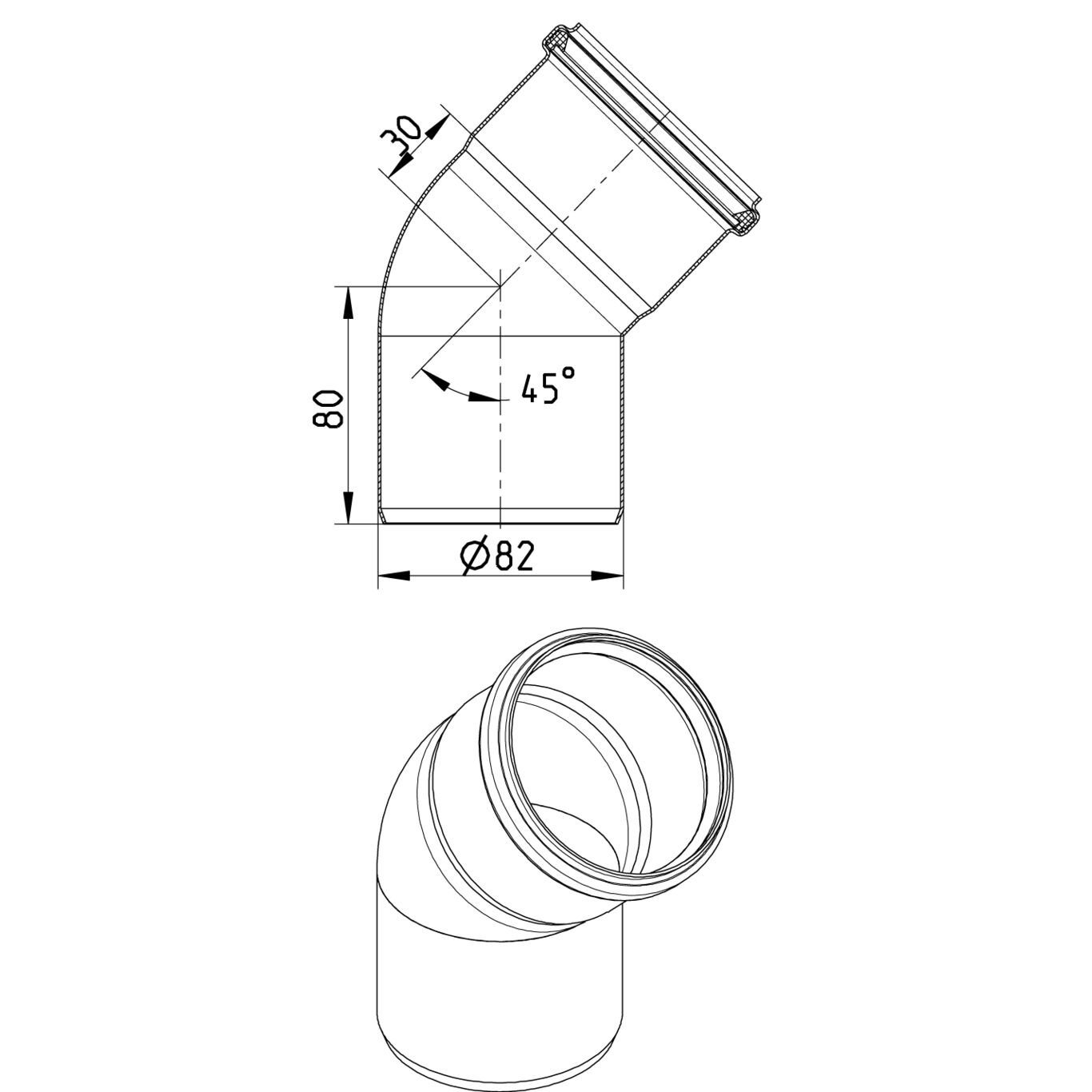

BEND 45°
-Diameter: Ø82mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| All Renovation 82 products | RS82 |
| Angle (°) | 45 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 3¼ |
| Outlet Diameter (mm) | 82 |
| Weight (kg) | 0,34 |
| Weight (lbs) | 0,75 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DE - TÜV Rheinland R 60178453 0001
Declaration of Perfomance BS-EN1124-1-002
DK - VA 2.12/19349 EuroPipe DS432
TÜRK LOYDU - 25041616077231247
BLÜCHER® EuroPipe EPD
HACCP Food Safety Programme - Europe
Declaration of Perfomance EN1124-1-001
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Achilles Certificate - 46702 PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains
