BEND 45° - (820.045.050 S)
Part Of the Series: Bend-45
Type no.: 820.045.050 S
EAN no.: 5705499401318
VVS no.: 160205350
RSK no.: 1550289
NRF no.: 2170754
LVI no.: 0250682

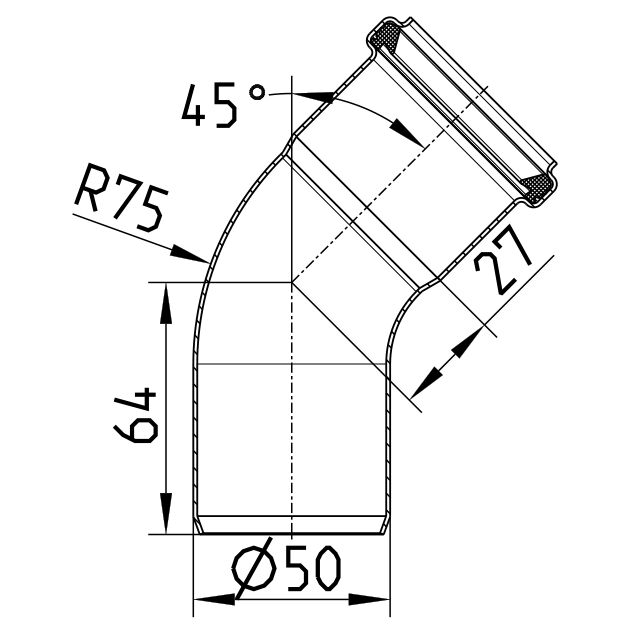

BEND 45°
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,17 |
Weight (lbs) | 0,37 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Australasia DK - VA 2.12/19349 EuroPipe DS432 AUS - WMKT00204 - 24 Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products DNV - TAP0000023-rev4, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings
