BEND 45° - (820.045.040)
Part Of the Series: Bend-45
Type no.: 820.045.040
EAN no.: 5705499412895
VVS no.: 160205040
RSK no.: 1552783
NRF no.: 2171202
LVI no.: 0240681

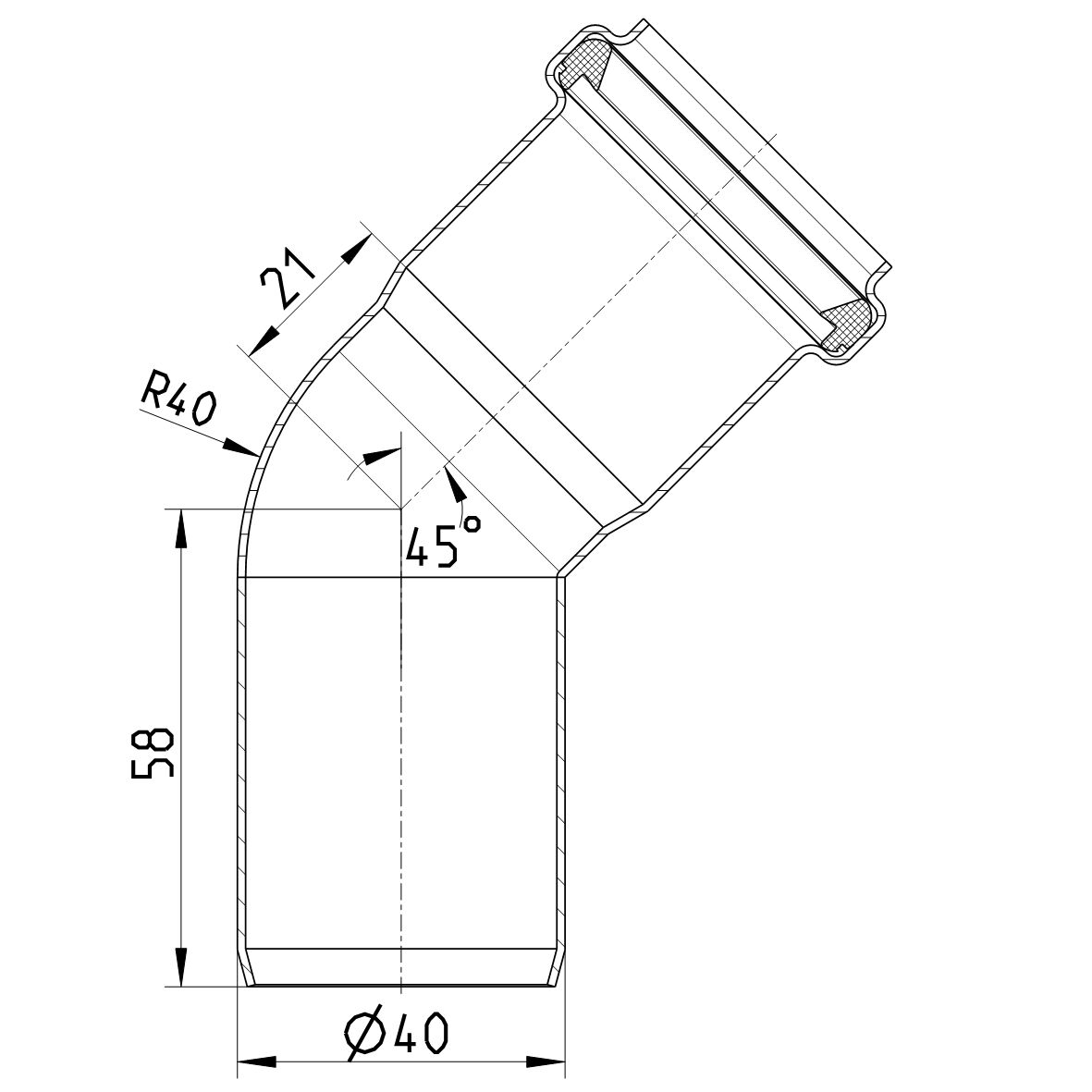

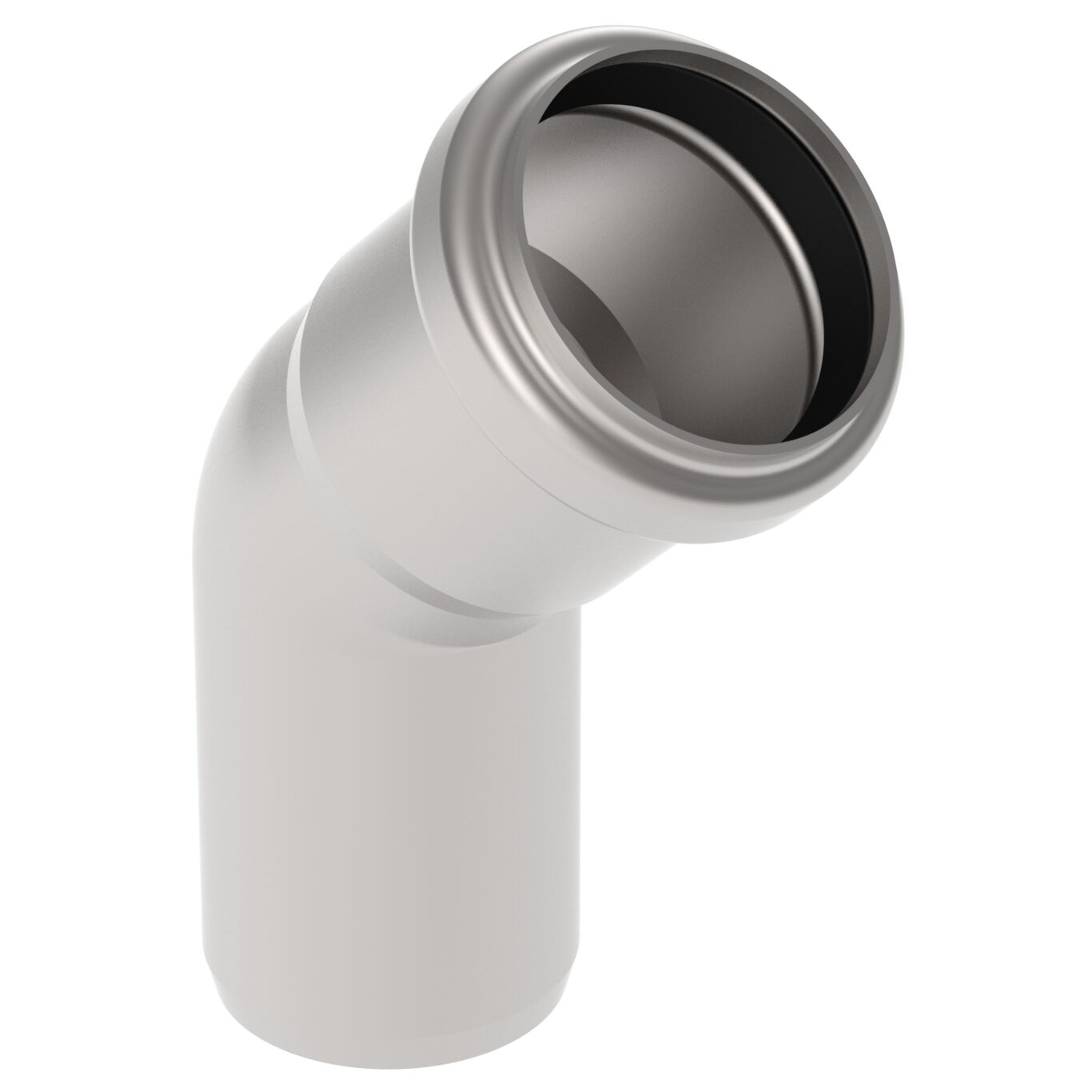

BEND 45°
-Diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 45 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 1½ |
Outlet Diameter (mm) | 40 |
Weight (kg) | 0,13 |
Weight (lbs) | 0,29 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe DK - VA 2.12/19349 EuroPipe DS432 FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia DE - LGA Certificate 57214035 a NO - 0692-22 EuroPipe US - IAPMO File No.3247-EuroPipe Achilles Certificate - 46702-22 Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA PL - Hygienic Certificate - All Products DNV - TAP0000023-rev4, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings
