BEND, LARGE RADIUS 45° - (825.045.315 S)
×
![]()
Part Of the Series: Bend-45-large radius
Type no.: 825.045.315 S
EAN no.: 5705499413830
VVS no.: 160205615
RSK no.: 1554579
NRF no.: 2172549
LVI no.: 0256014

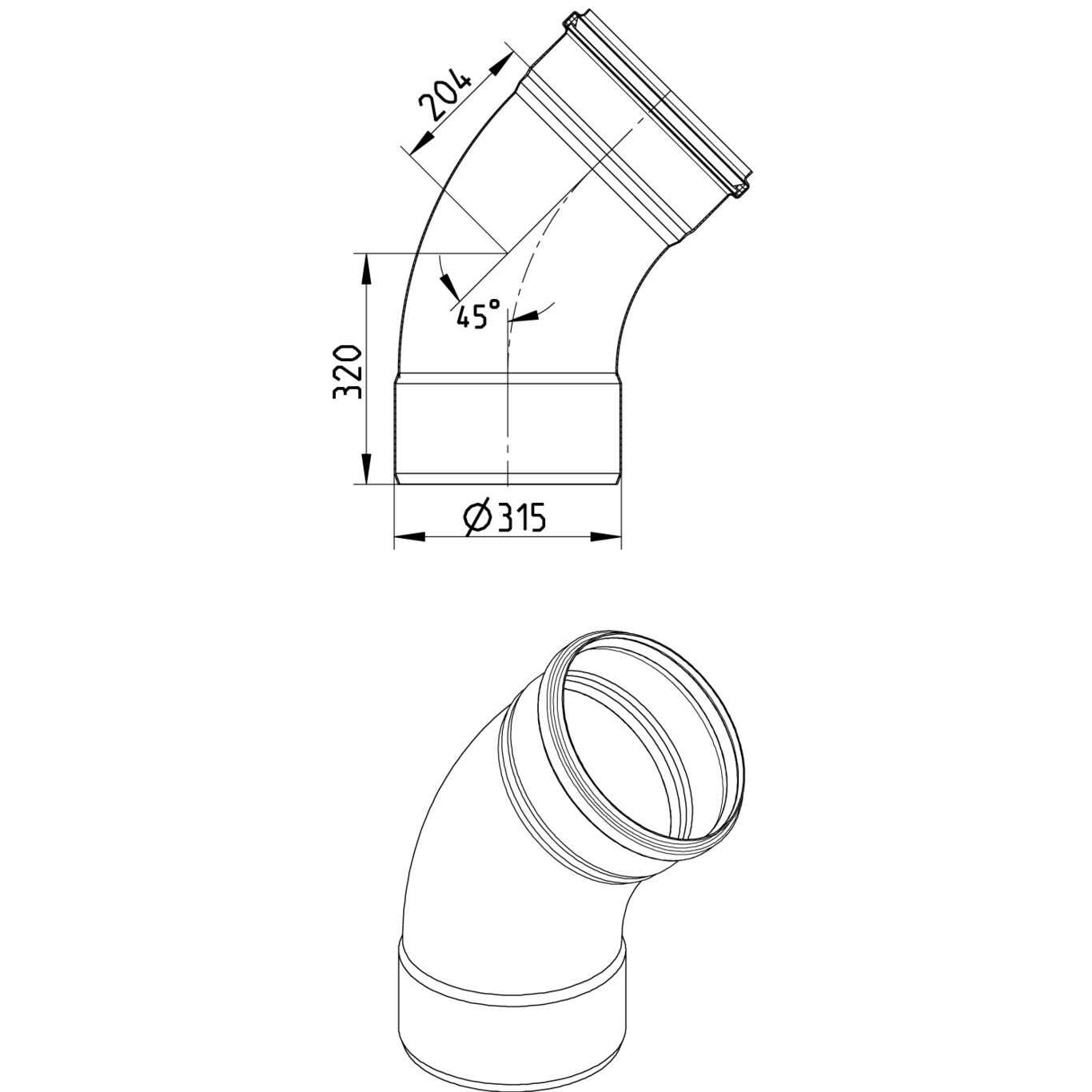

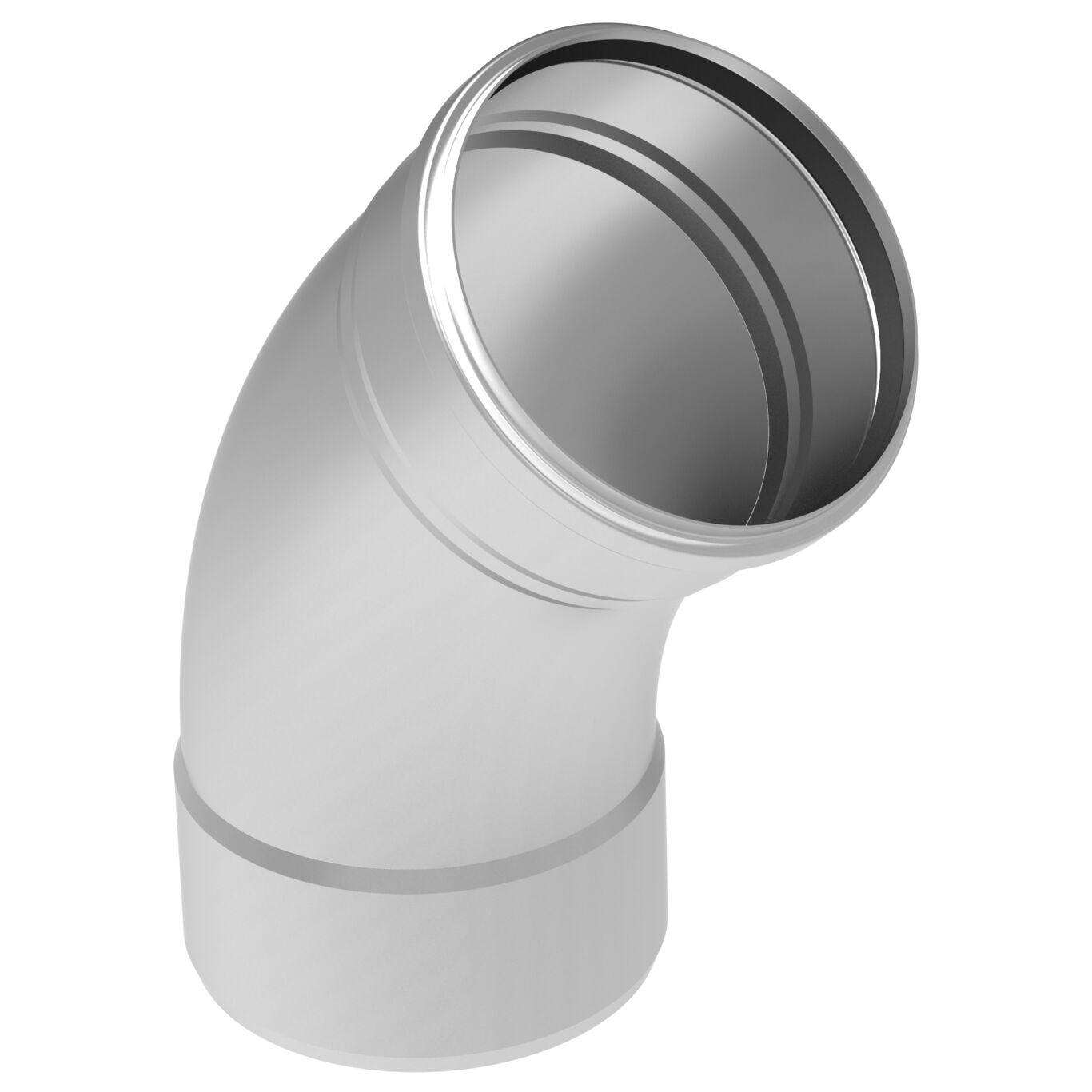

BEND, LARGE RADIUS 45°
-Diameter: Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 12 |
| Outlet Diameter (mm) | 315 |
| Weight (kg) | 10,78 |
| Weight (lbs) | 23,77 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
