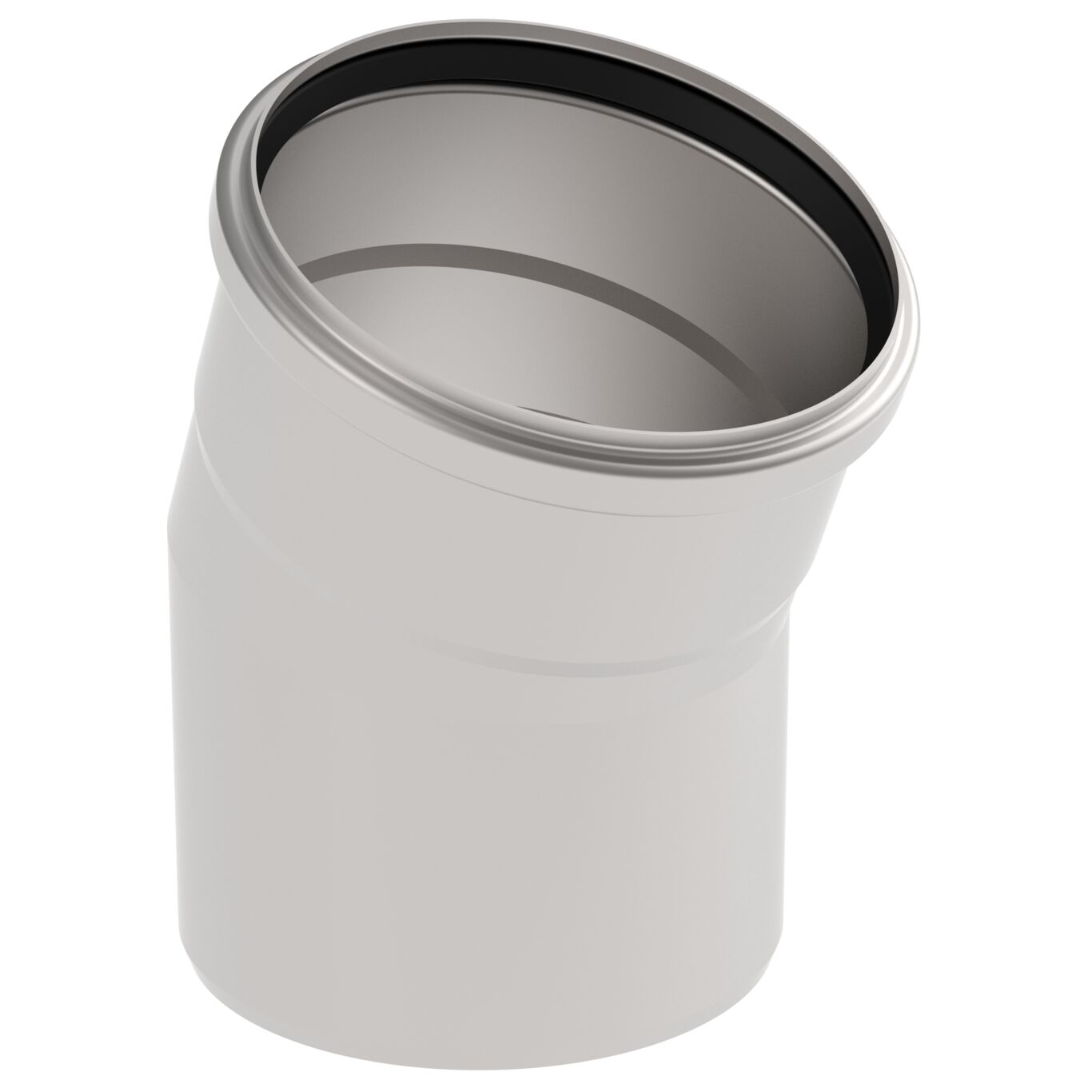

BEND 22.5° - (820.023.160 S)
Part Of the Series: Bend-22.5
Type no.: 820.023.160 S
EAN no.: 5705499408645
NRF no.: 2172518

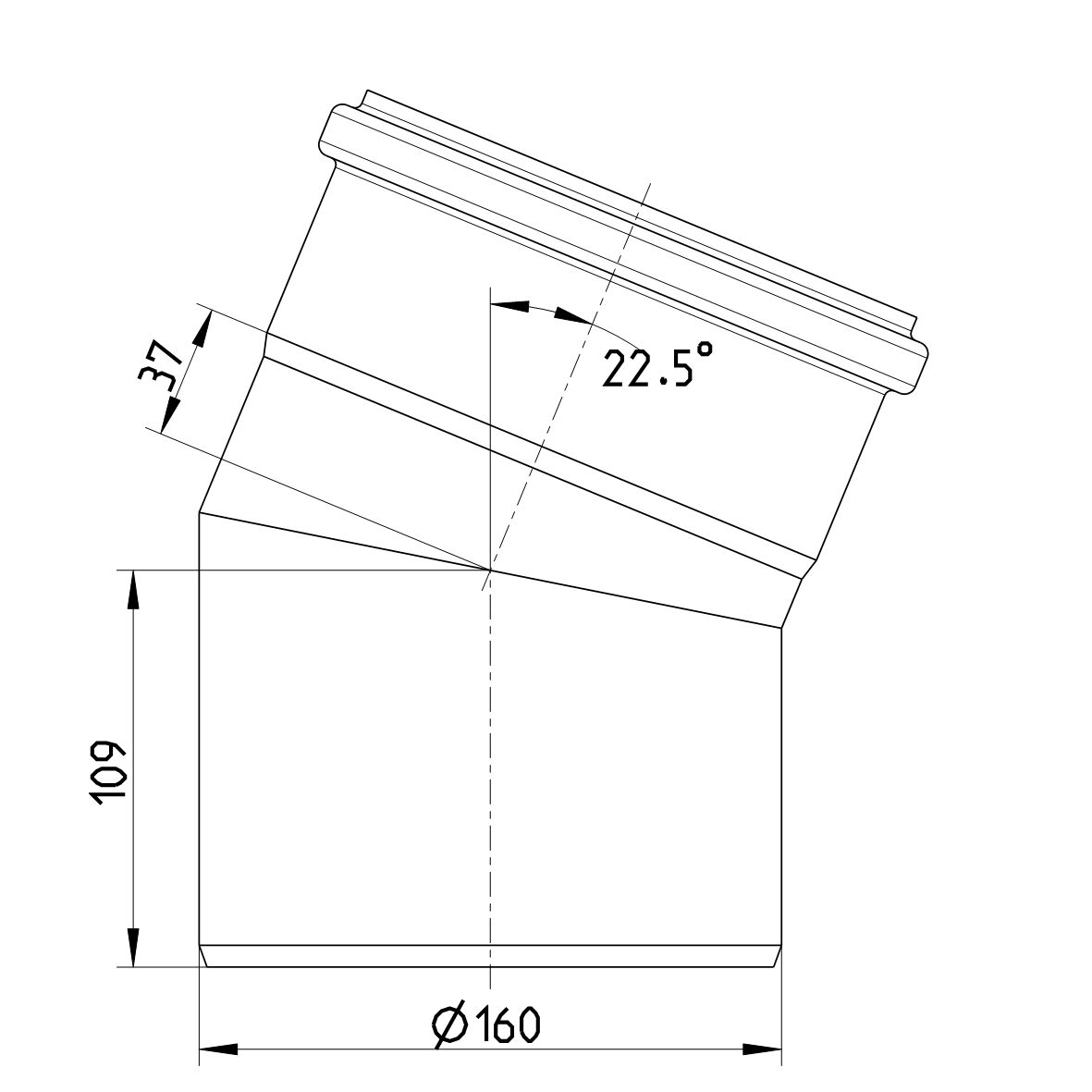

BEND 22.5°
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 22.5 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 1,18 |
Weight (lbs) | 2,6 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe RU - 0212322 Pipes-21 KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes
