BEND 15° - (820.015.125)
Part Of the Series: Bend-15
Type no.: 820.015.125
EAN no.: 5705499408607
VVS no.: 160209125
RSK no.: 1551526
NRF no.: 2170049
LVI no.: 0246042

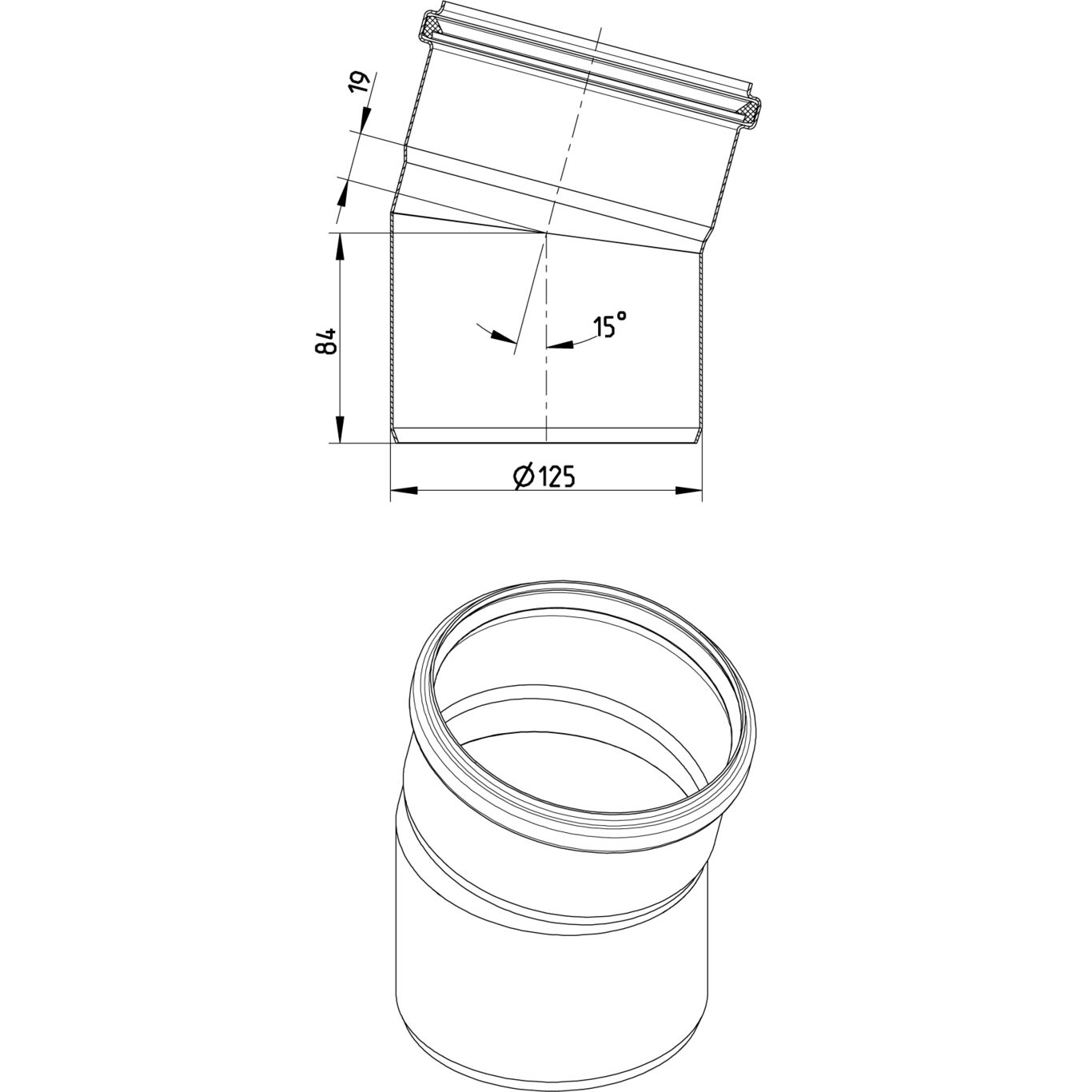

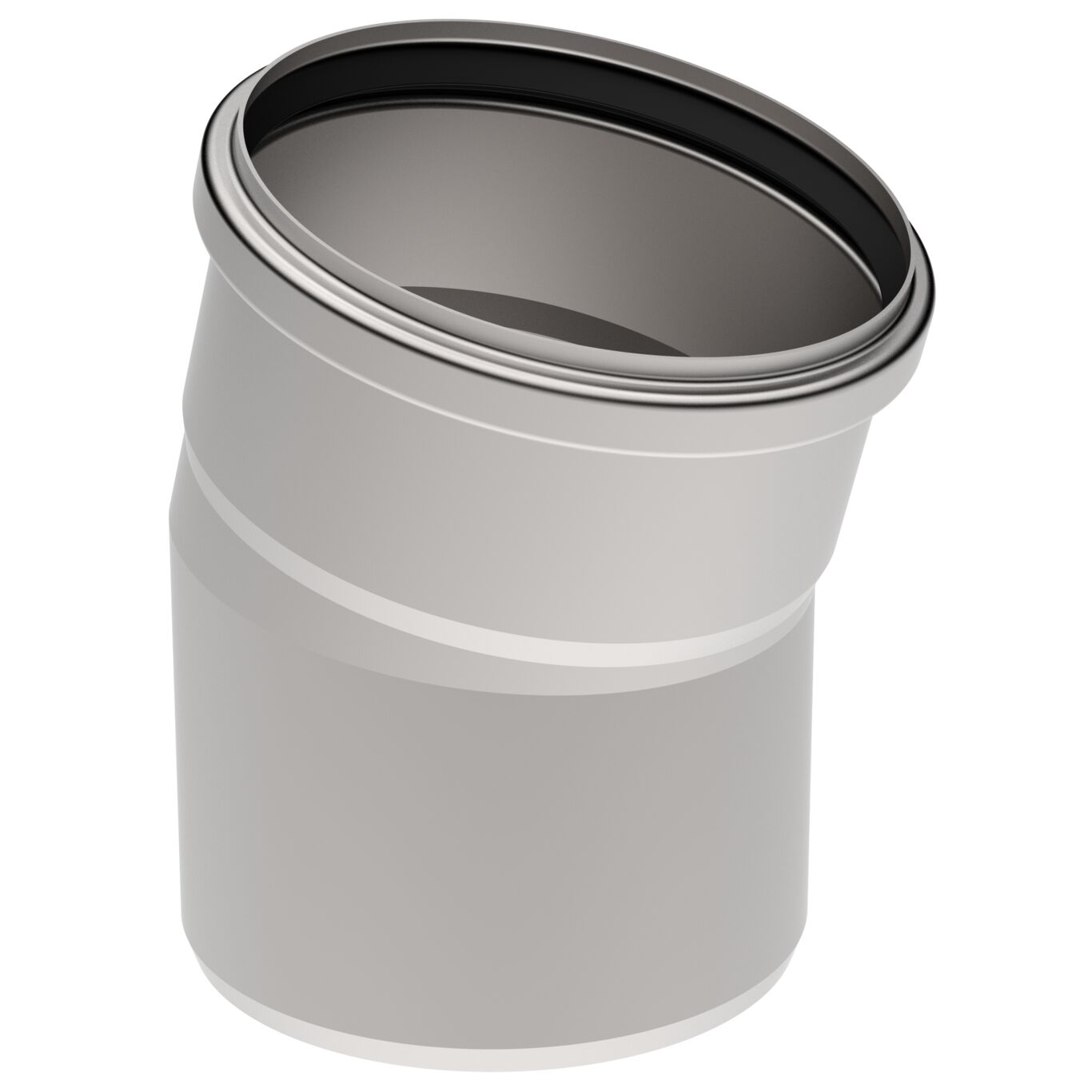

BEND 15°
-Diameter: Ø125mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 15 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 5 |
Outlet Diameter (mm) | 125 |
Weight (kg) | 0,56 |
Weight (lbs) | 1,23 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19350
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products
