ADAPTOR Ø50MM FOR SYSTEM-X - (859.050.053 S)

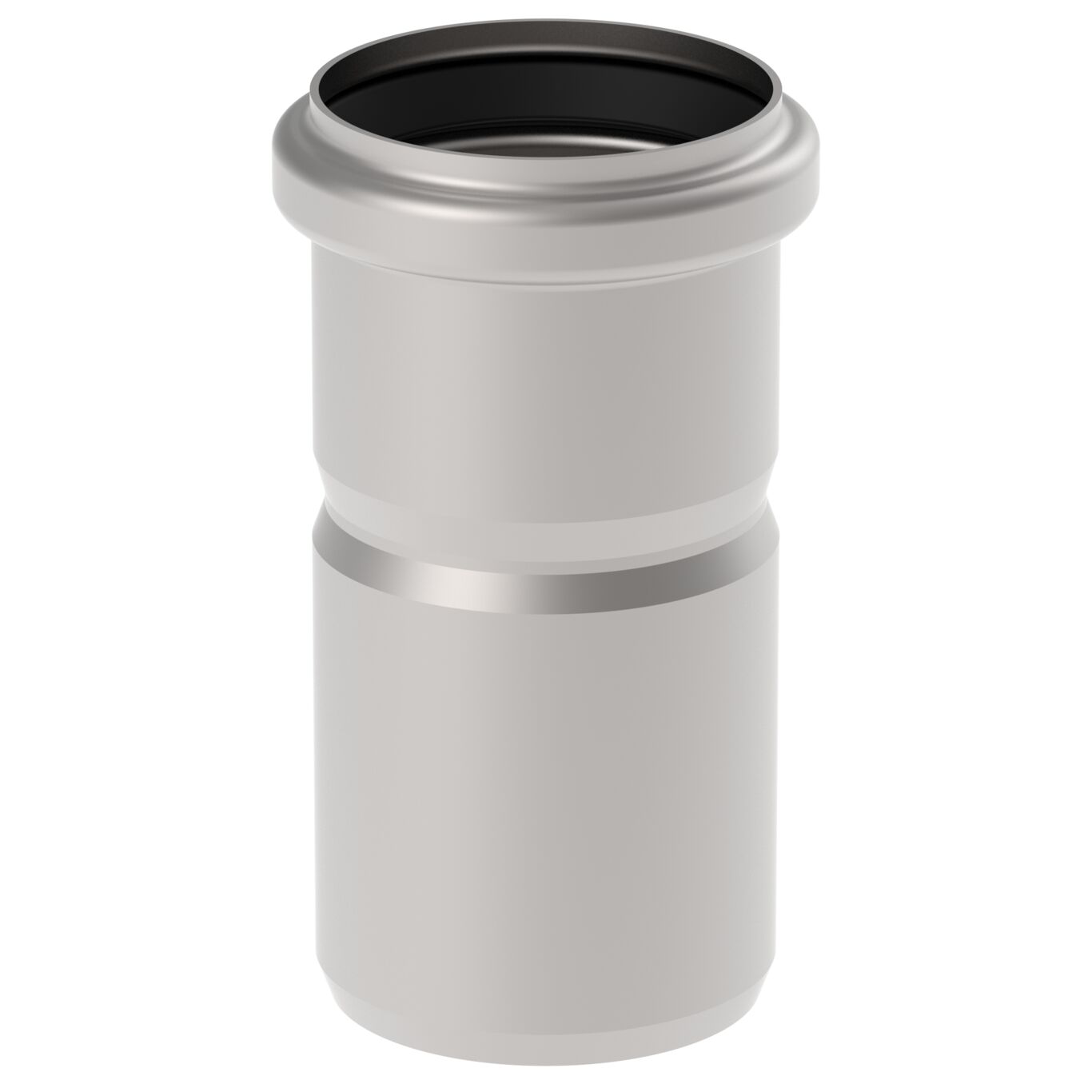

Product Image of an adaptor from the series Adaptor-System X.

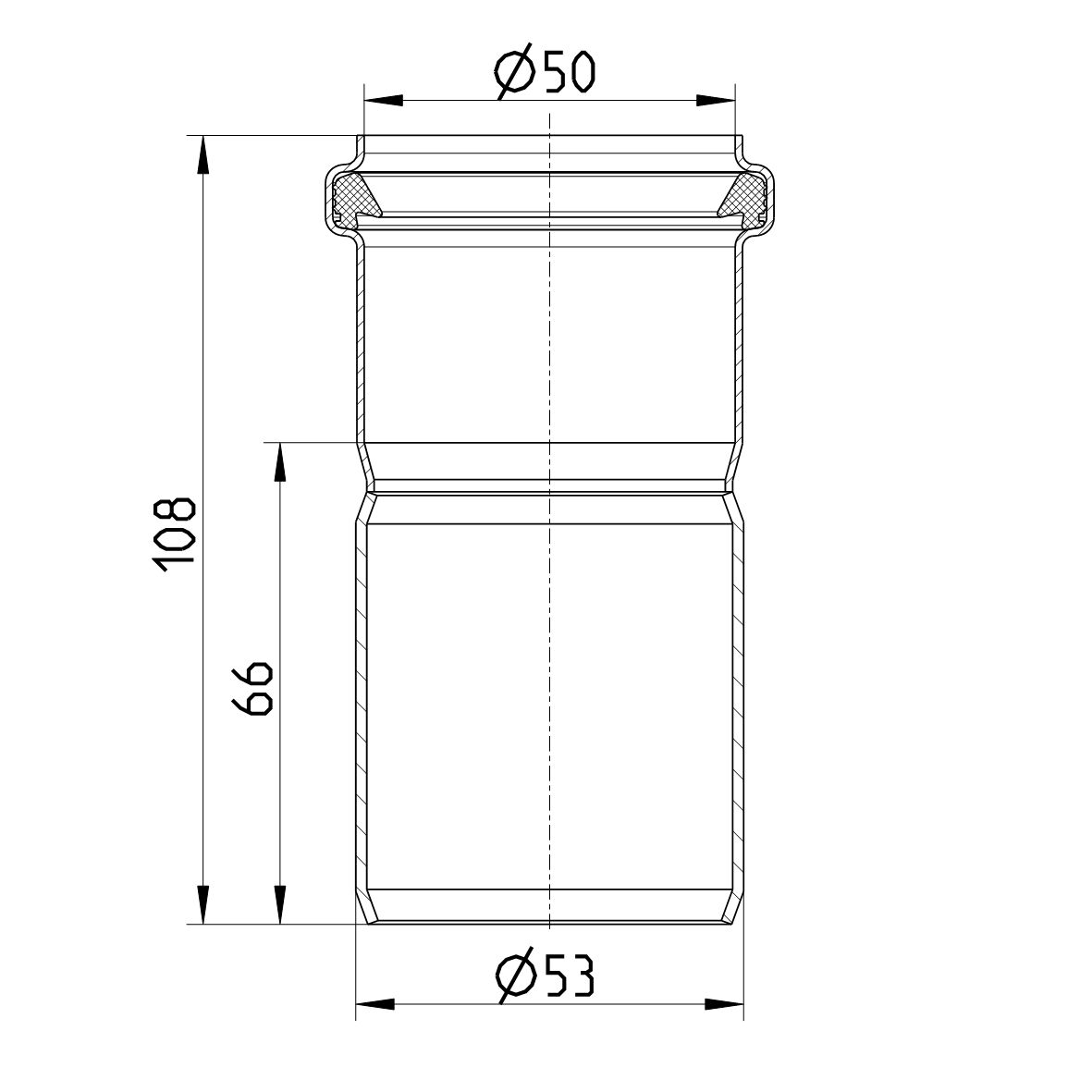

Line drawing of an adaptor from the series Adaptor-System X.

Part Of the Series: Adaptor-System X

Type no.: 859.050.053 S

EAN no.: 5705499140118

Take me to FAQ section

ADAPTOR Ø50MM FOR SYSTEM-X
-Spigot: Ø53mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Material	AISI 316L
Material (EN)	EN 1.4404
Minimum Height (mm)	108
Outlet dia. (Inch)	2
Outlet Diameter (mm)	50
Weight (kg)	0,16
Weight (lbs)	0,35

Downloads
- Dimensions of socket and spigot
- DWG - 859.050.053 S

Approvals and standards

For approvals and standards information, please refer to the below certificates.

TÜRK LOYDU - 25041616077231247 HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02
