FLANGE ADAPTOR - (850.015.160 S FL)
Part Of the Series: Adaptor-flange
Type no.: 850.015.160 S FL
EAN no.: 5705499409727
NRF no.: 2172678

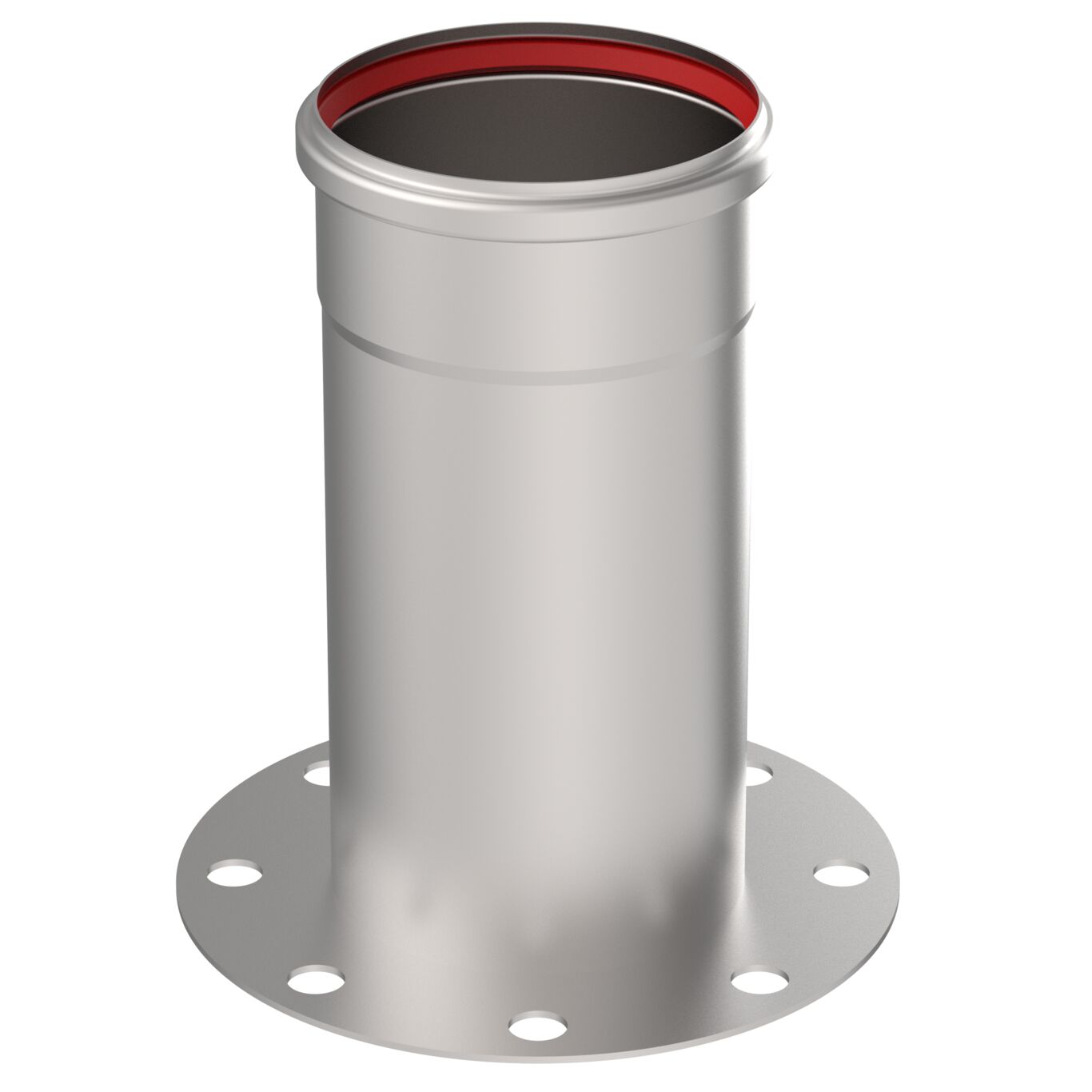

FLANGE ADAPTOR

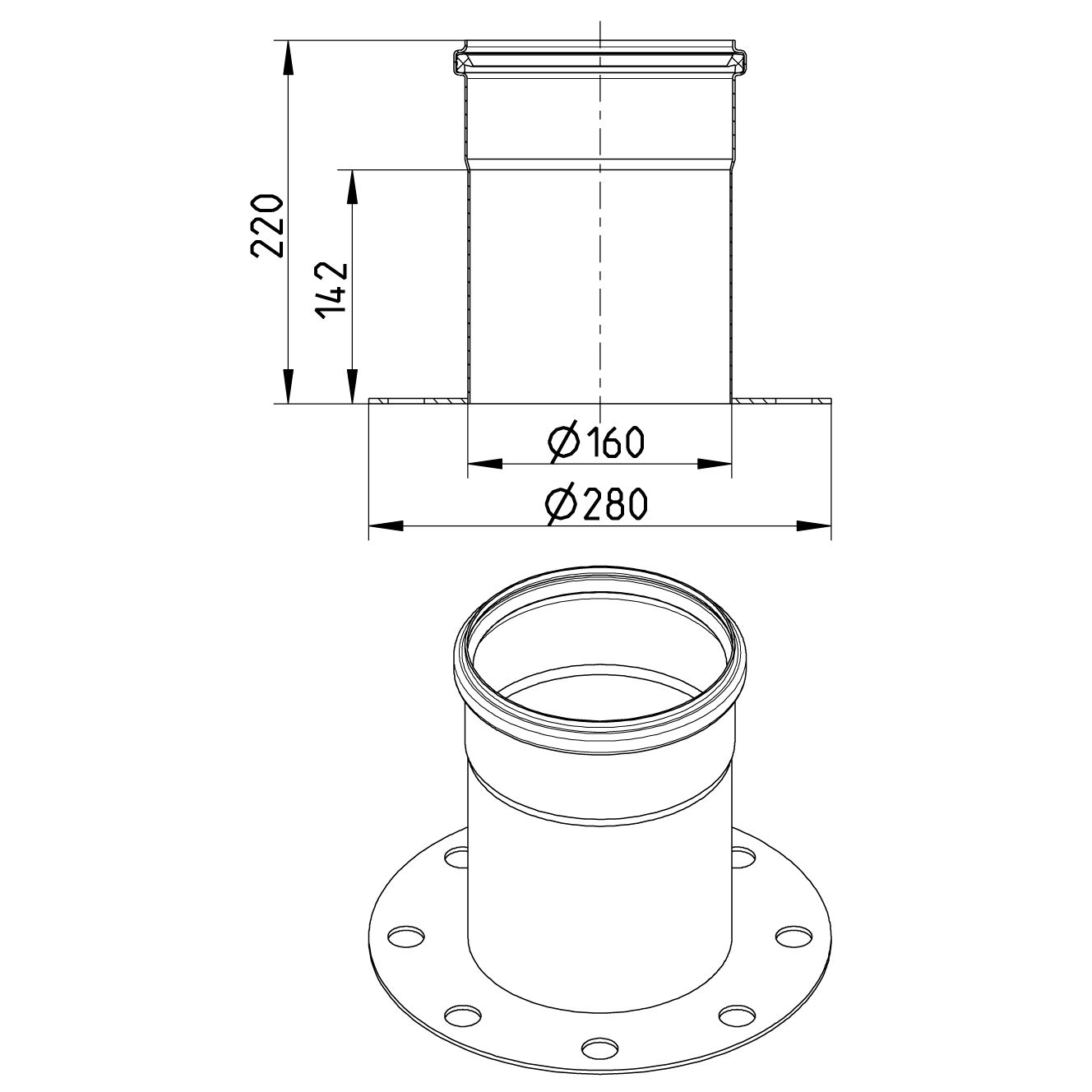

-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length (mm) | 150 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 222 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 3,08 |
Weight (lbs) | 6,79 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
