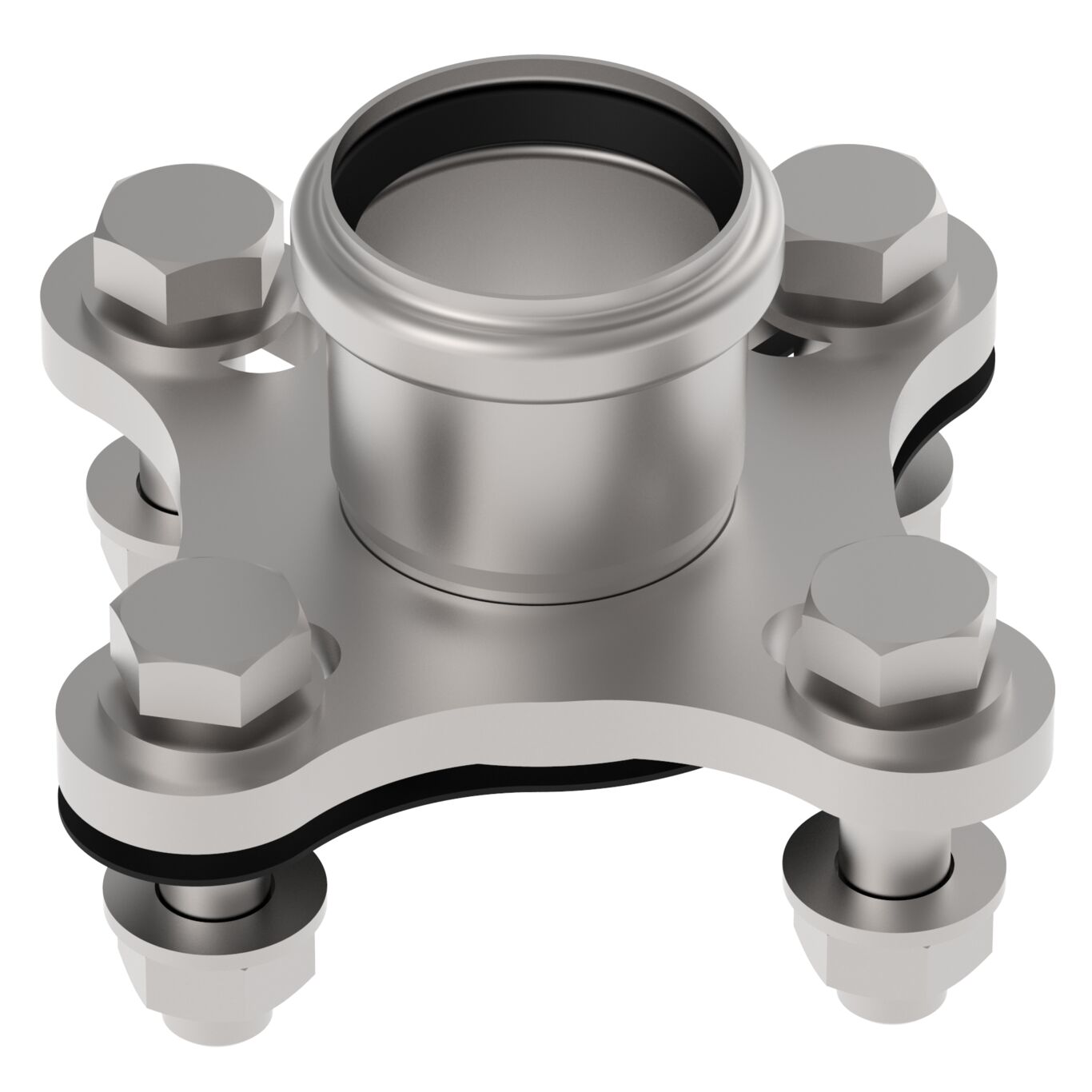

UNIVERSAL FLANGE WITH SOCKET - (854.500.050 S)
Part Of the Series: Adaptor-flange-universal
Type no.: 854.500.050 S
EAN no.: 5705499138870
NRF no.: 2172727
UNIVERSAL FLANGE WITH SOCKET

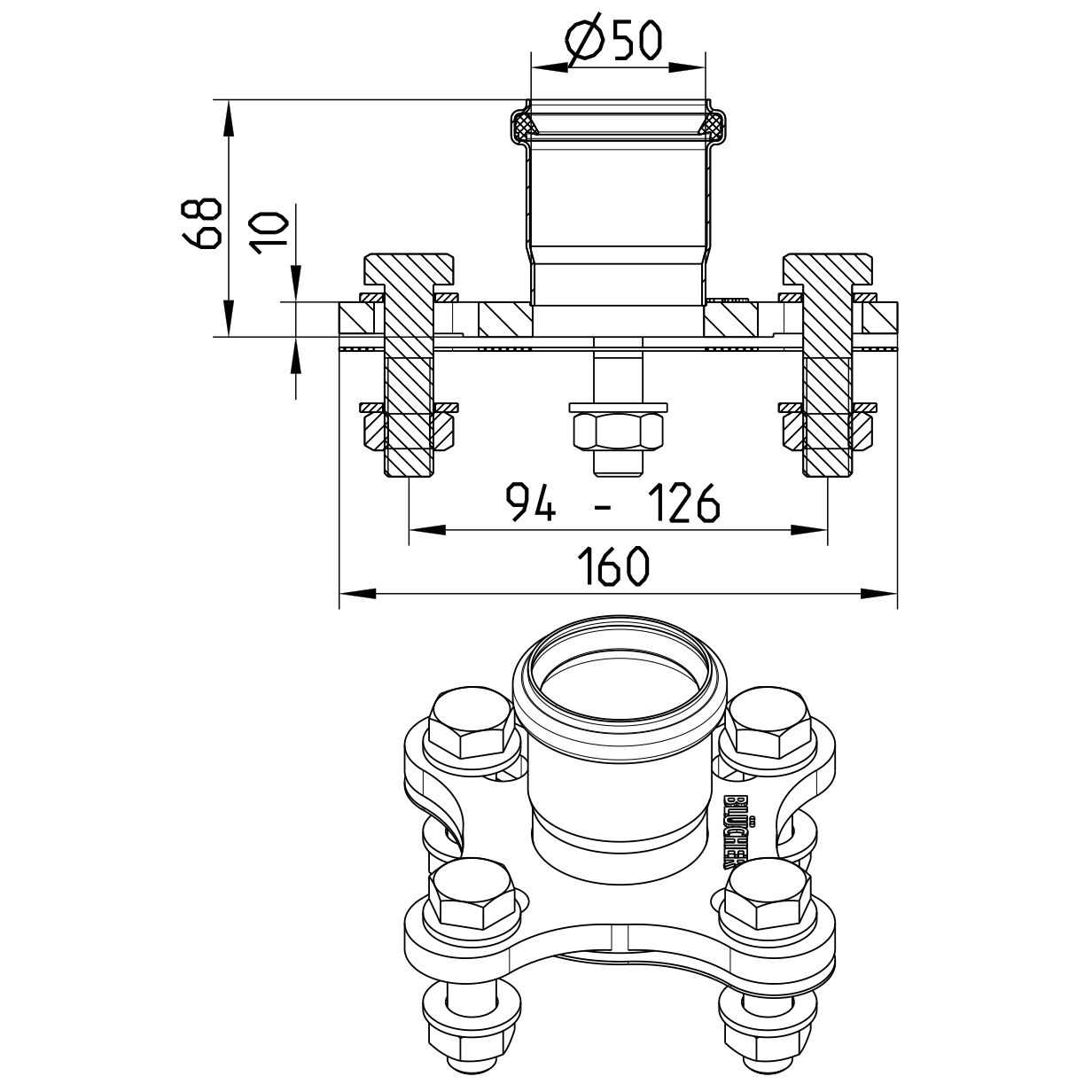

-Diameter: Ø50mm
-Equivalent to ANSI 2" / JIS40-50 5K-10K / DIN DN40-50 PN6-16
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 68 |
Number of Bolts | 4 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,85 |
Weight (lbs) | 1,87 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes
