DIN FLANGE ADAPTOR WITH SOCKET - (854.300.110 S)
Part Of the Series: Adaptor-flange-DIN
Type no.: 854.300.110 S
EAN no.: 5705499403886
RSK no.: 1552191
NRF no.: 2170314

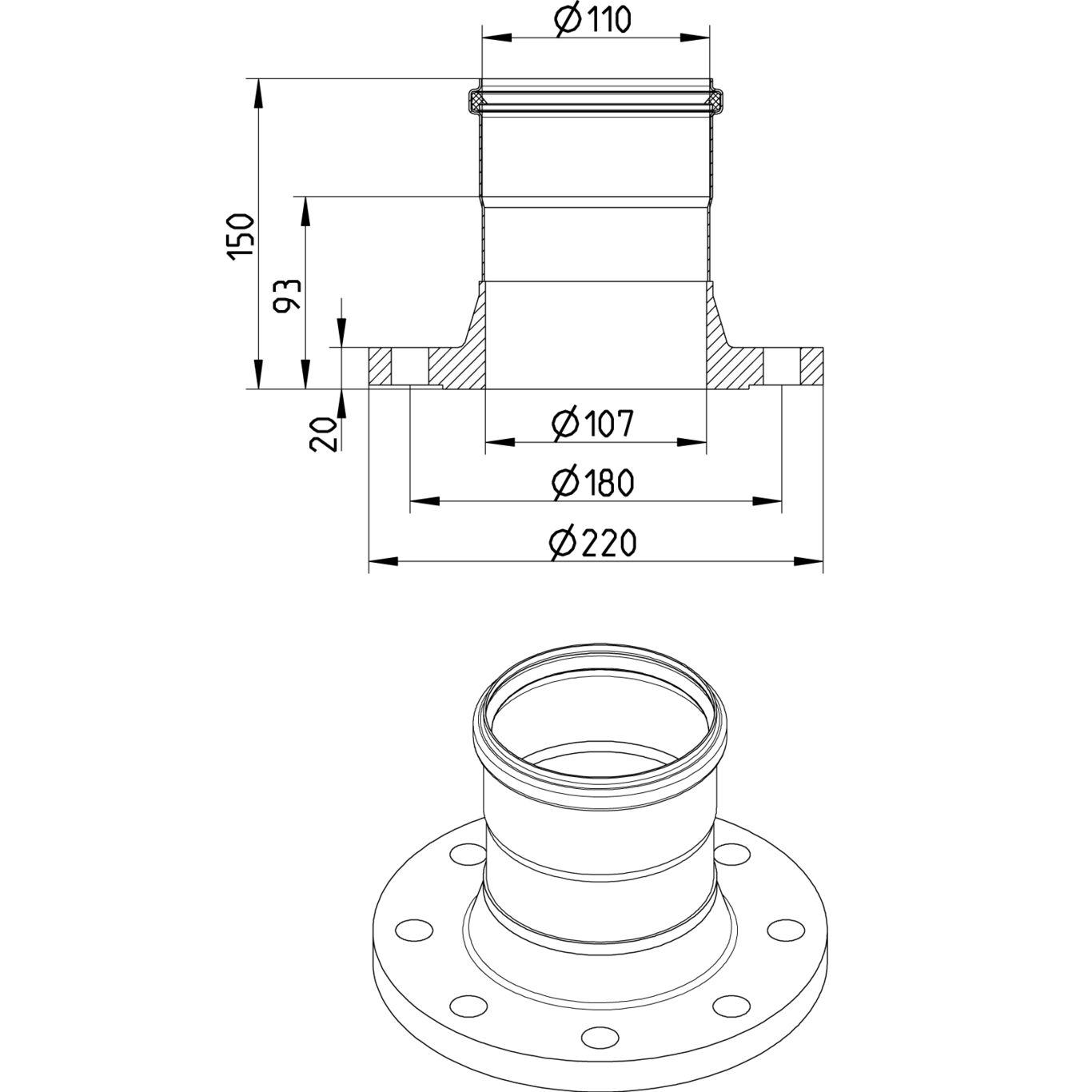

DIN FLANGE ADAPTOR WITH SOCKET
-Diameter: Ø110mm
-Flange PN16/DN100, DIN 2633/EN1092-1
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length (mm) | 93 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 150 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 5,00 |
Weight (lbs) | 11,02 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
HACCP Food Safety Programme - Europe KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02 RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA
