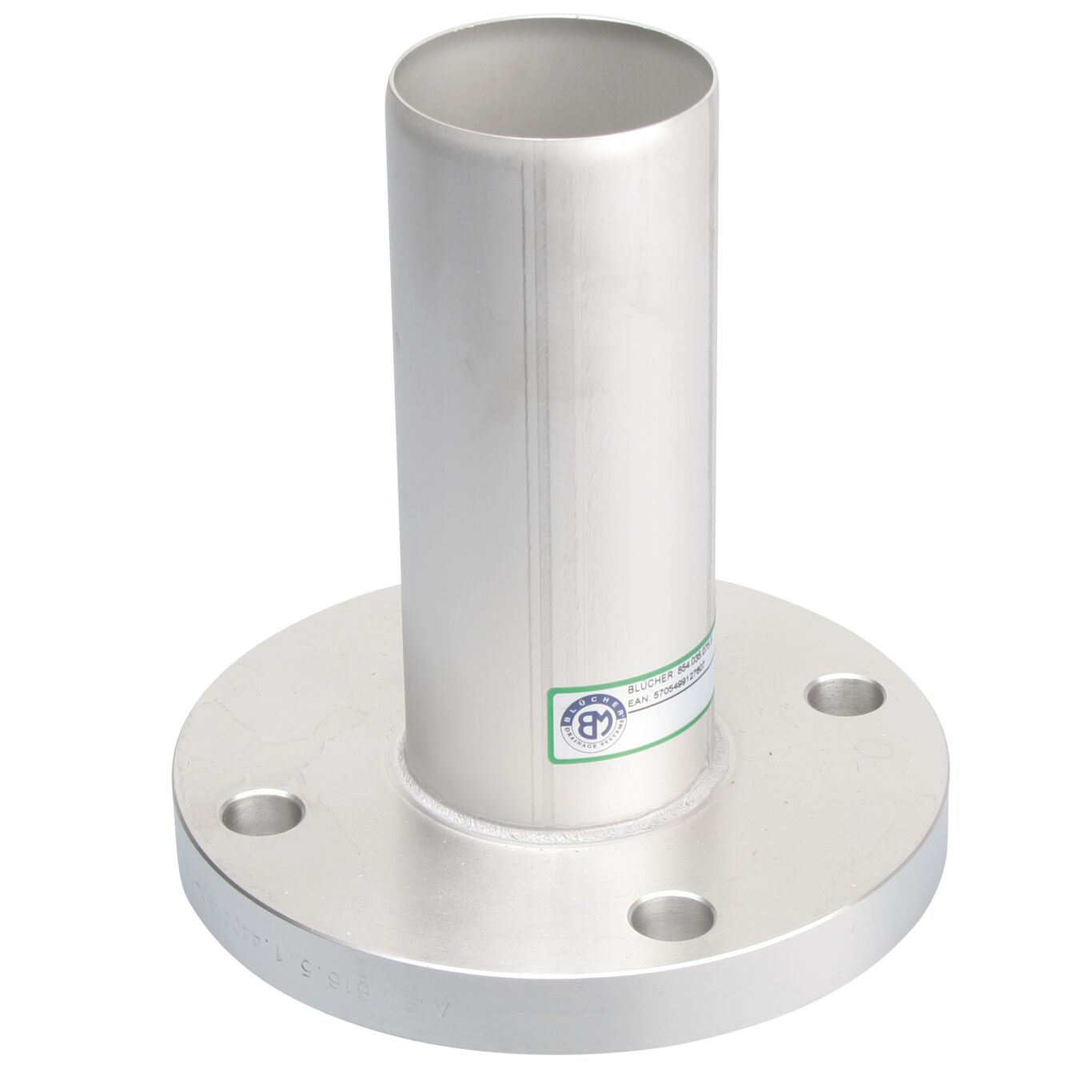

ANSI FLANGE ADAPTOR WITH SPIGOT - (854.035.075 S)
×
![]()
Part Of the Series: Adaptor-flange-ANSI
Type no.: 854.035.075 S
EAN no.: 5705499127607
NRF no.: 2172721
ANSI FLANGE ADAPTOR WITH SPIGOT
-Diameter: Ø75mm
-Flange ANSI B16.5
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 191 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 4,52 |
| Weight (lbs) | 9,96 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
