STRAIGHT PIPE WITH ONE SOCKET - (811.100.040)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.100.040
EAN no.: 5705499412710
VVS no.: 160120100
RSK no.: 1552778
NRF no.: 2171196
LVI no.: 0240035

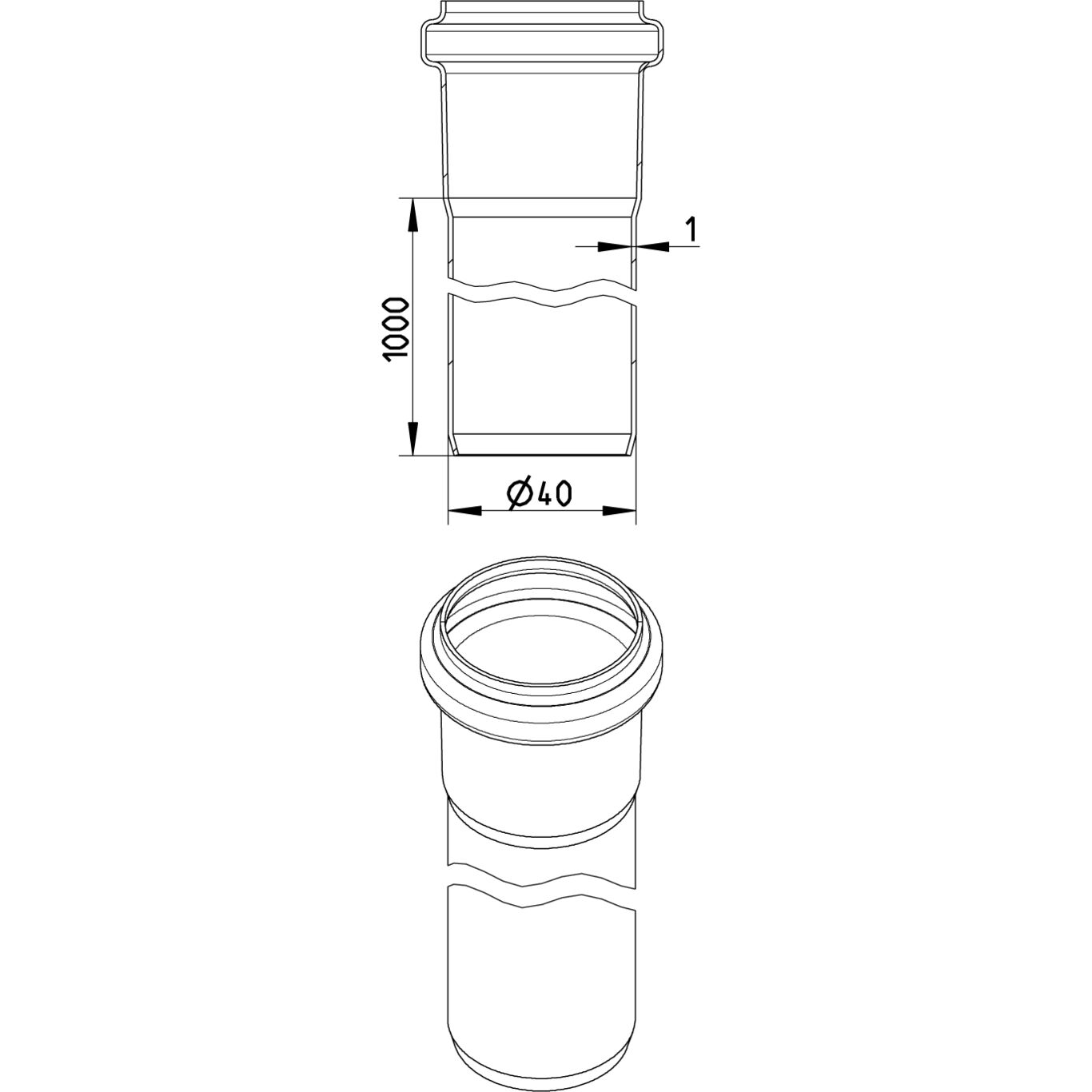

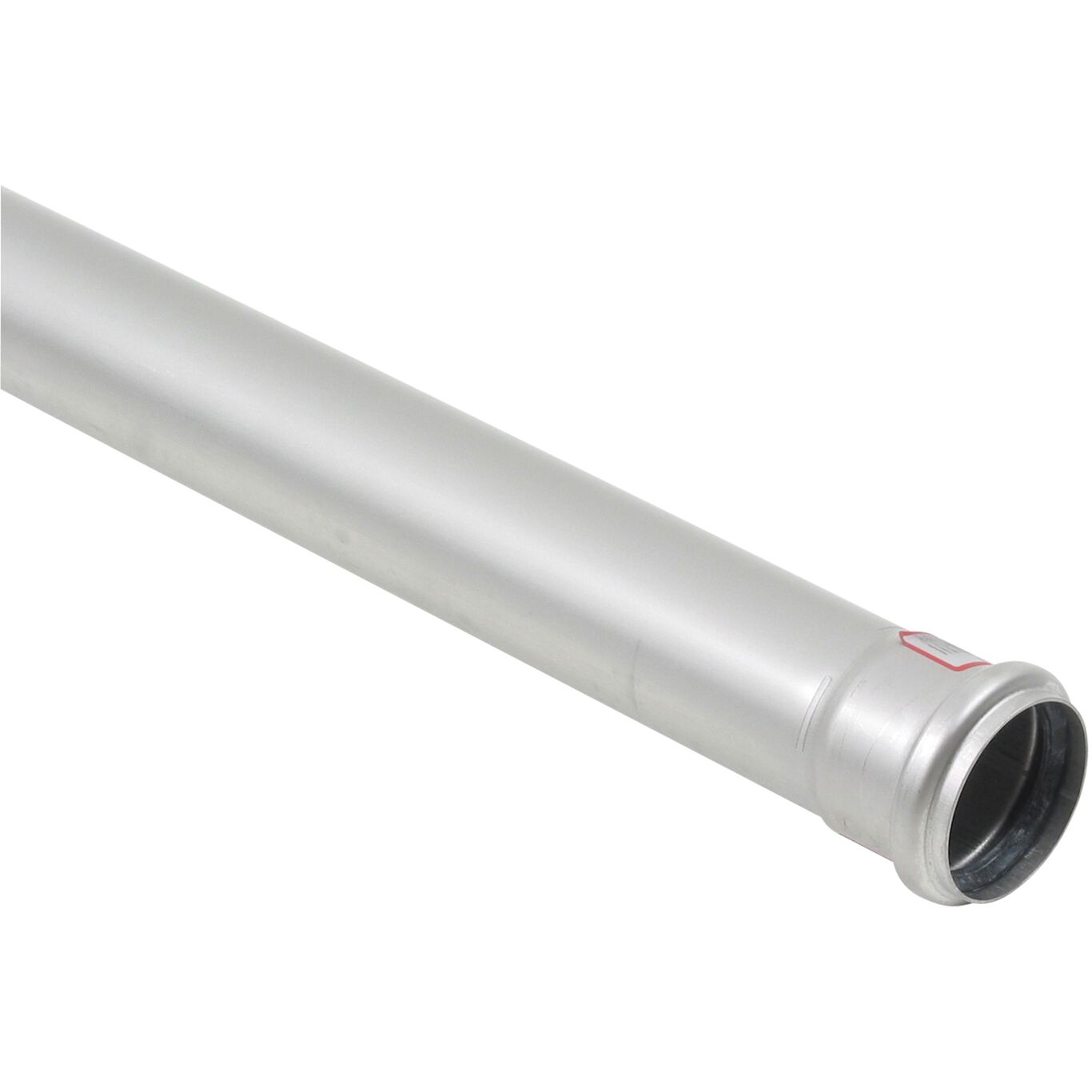

STRAIGHT PIPE WITH ONE SOCKET
-Length: 1000mm
-Diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 3' 3" |
| Length of straight pipe (mm) | 1000 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 1,02 |
| Weight (lbs) | 2,25 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe RINA -MAC285119XG EuroPipe RU - 0212322 Pipes-21 DNV - TAP0000023-rev4, Sanitary discharge pipes Lloyds Register LR22419510TA Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products ABS - LD1716353-PDA RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval
