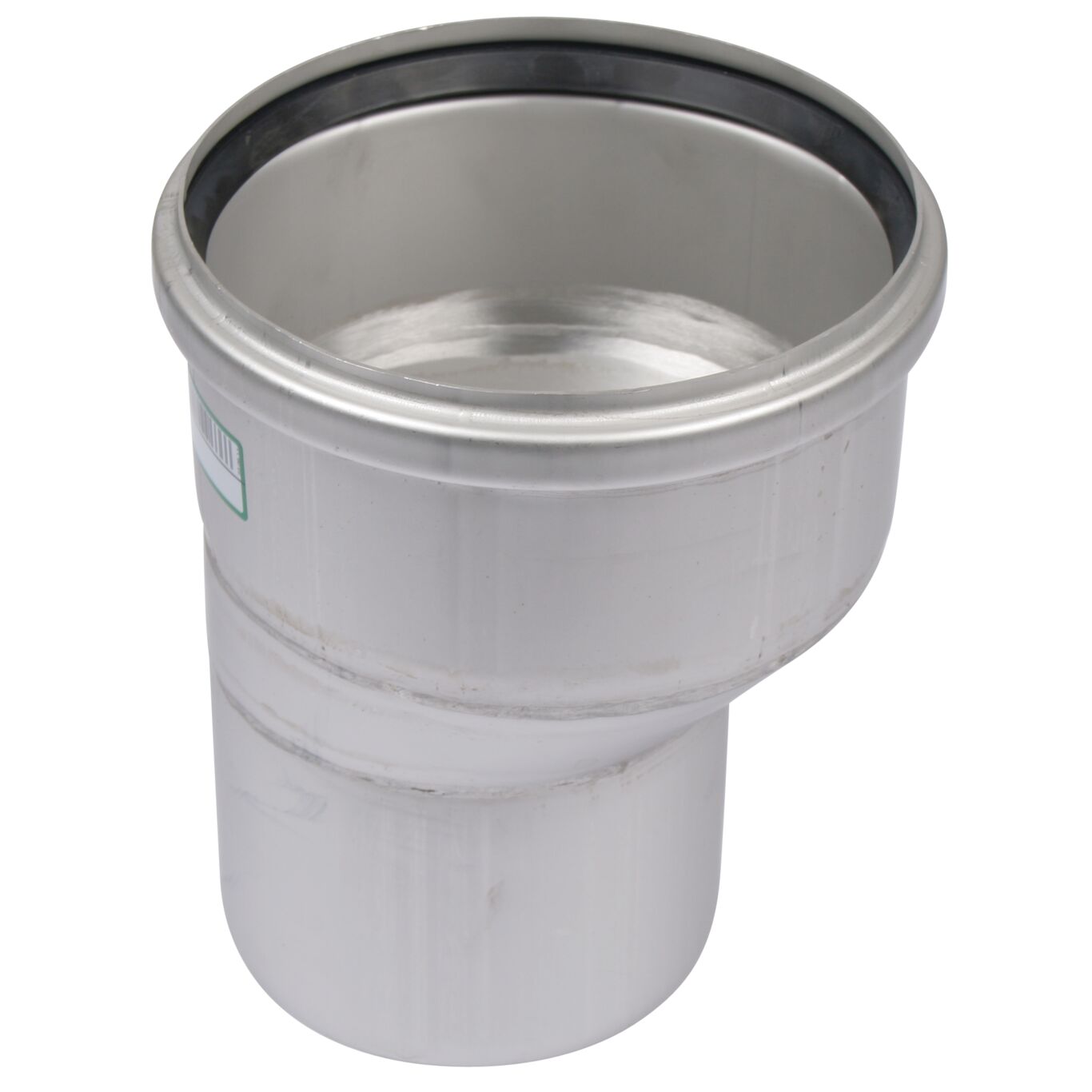

REDUCER ECCENTRIC - (850.160.125 S)
Part Of the Series: Reducer-eccentric
Type no.: 850.160.125 S
EAN no.: 5705499413366
VVS no.: 160261558
RSK no.: 1551187
NRF no.: 2172703
LVI no.: 0256059
REDUCER ECCENTRIC

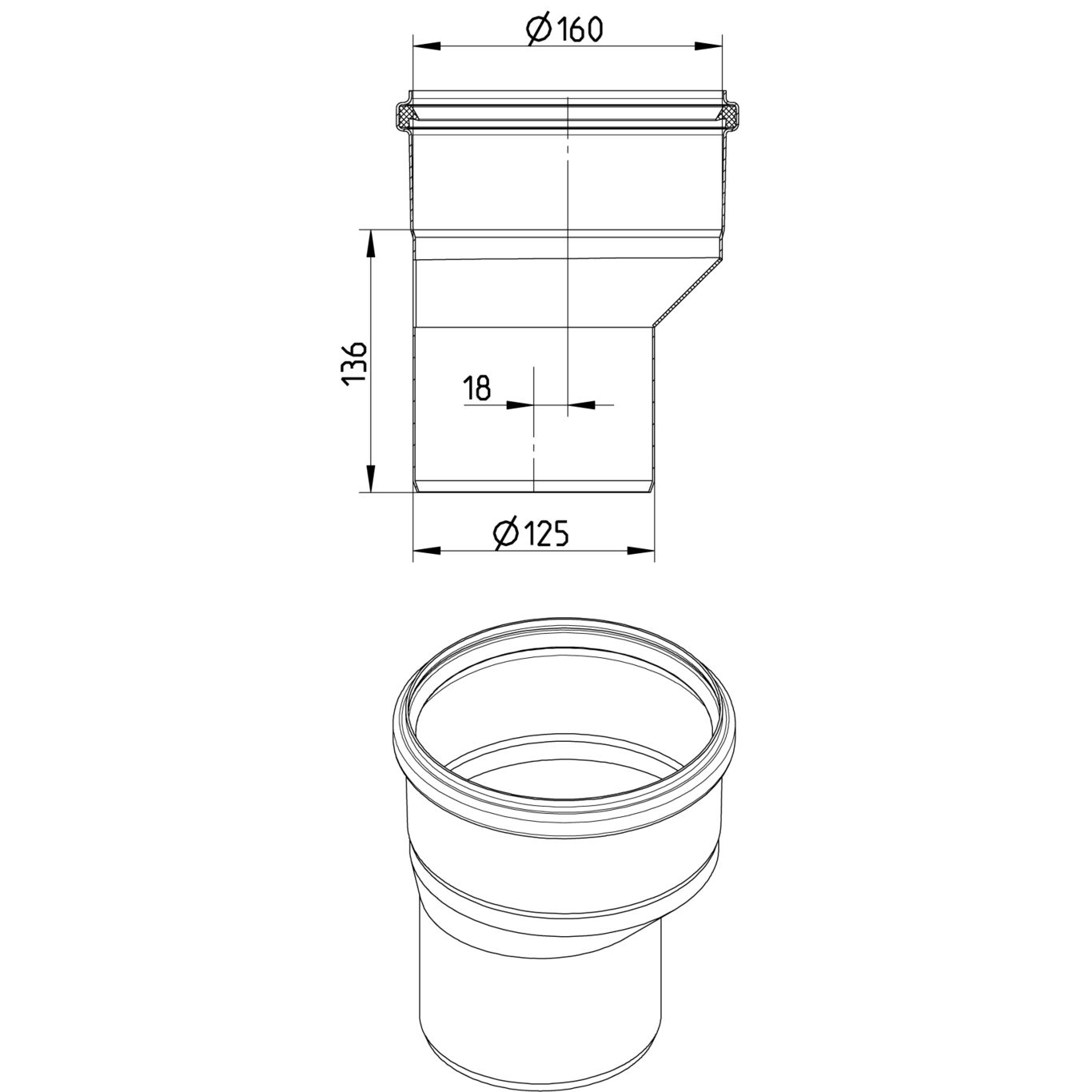

-Diameter: Ø160mm to Ø125mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length (mm) | 136 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 5 |
Outlet Diameter (mm) | 125 |
Weight (kg) | 0,50 |
Weight (lbs) | 1,1 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19350 NO - 0692-22 EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Europe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Australasia DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products ABS - 23-2329630-PDA Achilles Certificate - 46702-22 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe
