SWEPT BRANCH 87.5° - (839.110.160)
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.110.160
EAN no.: 5705499402636
VVS no.: 160222157
RSK no.: 1550187
NRF no.: 2170132
LVI no.: 0245244

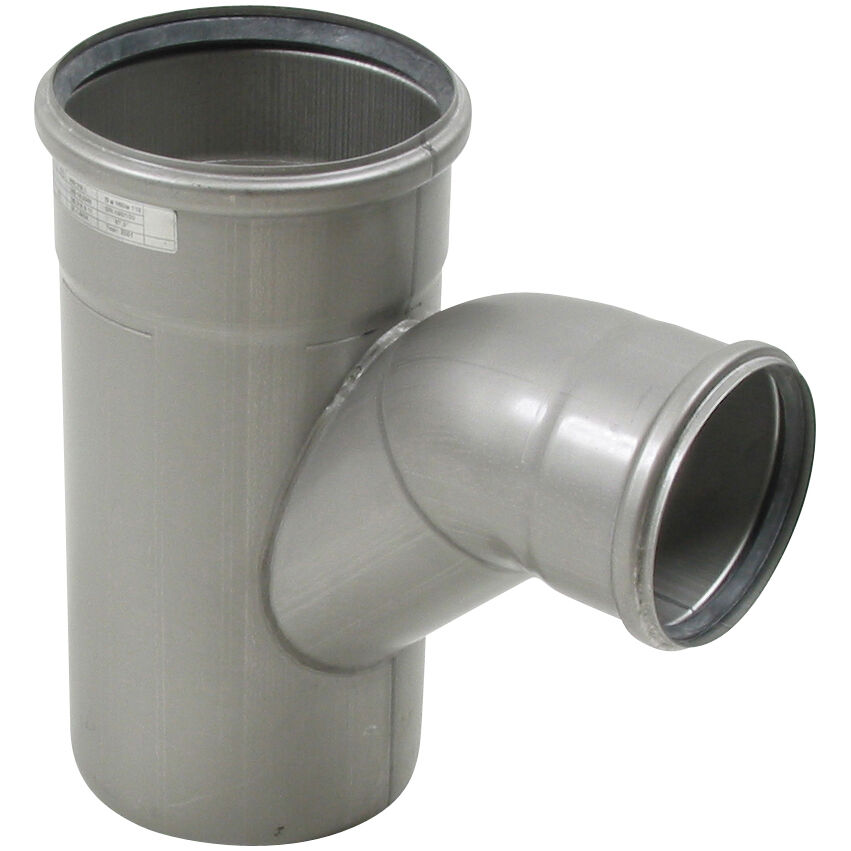

SWEPT BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 256 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 2,53 |
Weight (lbs) | 5,58 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19350-22
EU - HACCP Region 4
NO - 0692-22
AUS - HACCP Region 1
US - IAPMO File No.3247-19
DK - VA 2.12/19349-22 MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 RU - 0212322 Pipes-21 RS - 22.10018.262 Bureau Veritas, 02375-I0 UR - 1055745 ABS - 23-2329630-PDA DNV - TAP0000023-rev3 Lloyds Register LR22419510TA-01 PL - Hygienic Certificate - All Products RINA - MAC041623XG - EuroPipe Achilles Certificate - 46702-23
