BEND, LONG 87.5°, 50 MM - (821.000.050)
×
![]()
Part Of the Series: Bend-87.5-long radius
Type no.: 821.000.050
EAN no.: 5705499404005
RSK no.: 1551567
NRF no.: 2170062

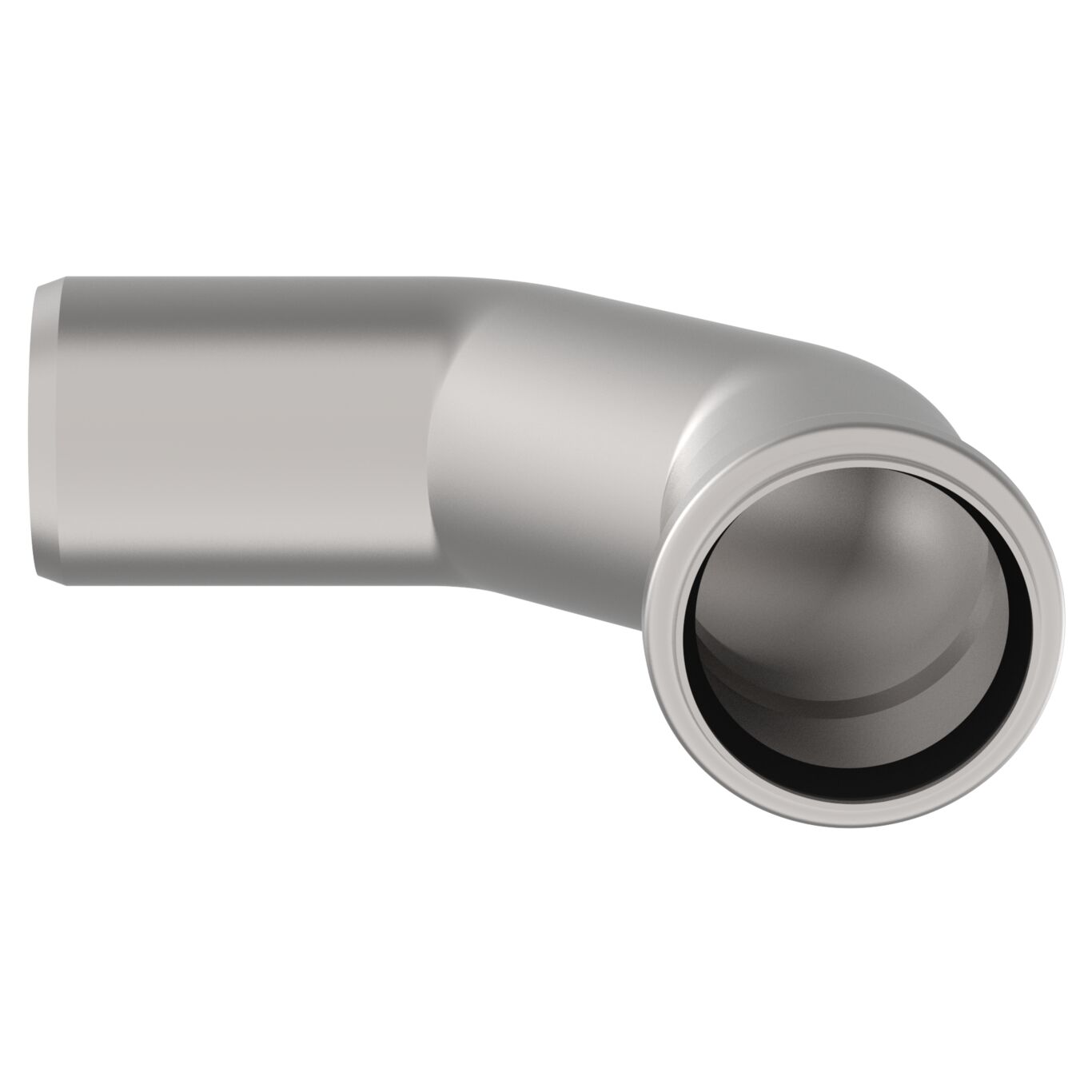

BEND, LONG 87.5°, 50 MM
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301

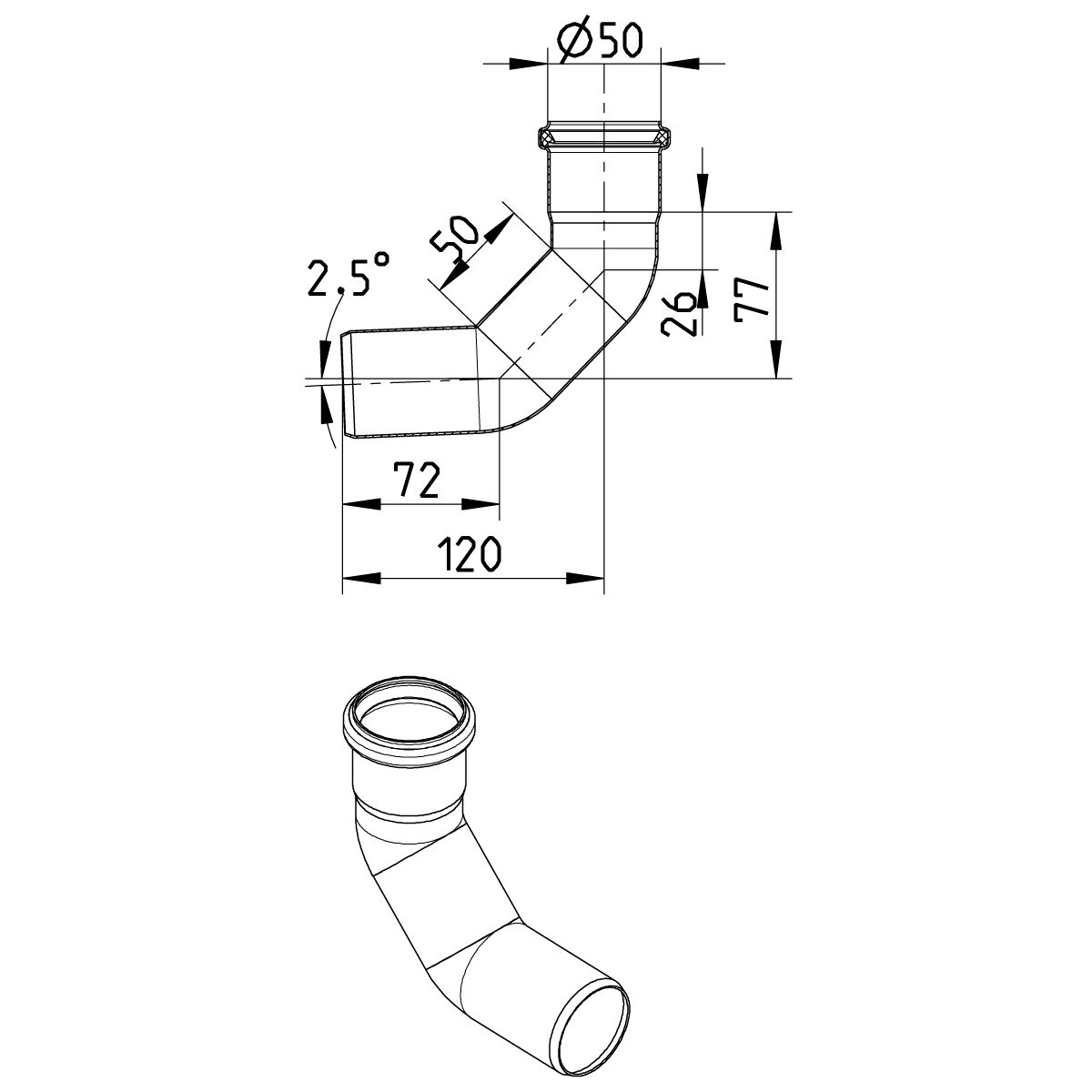

| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 77 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,30 |
| Weight (lbs) | 0,66 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe ABS - LD1716353-PDA PL - Hygienic Certificate - All Products RU - 0212322 Pipes-21 RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval Achilles Certificate - 46702-22 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings
