BLANK PLATE SQUARE - (610.155.451)
Part Of the Series: Grating-Drain-145
Type no.: 610.155.451
EAN no.: 5705499102185
VVS no.: 153897010
Size: 140x140

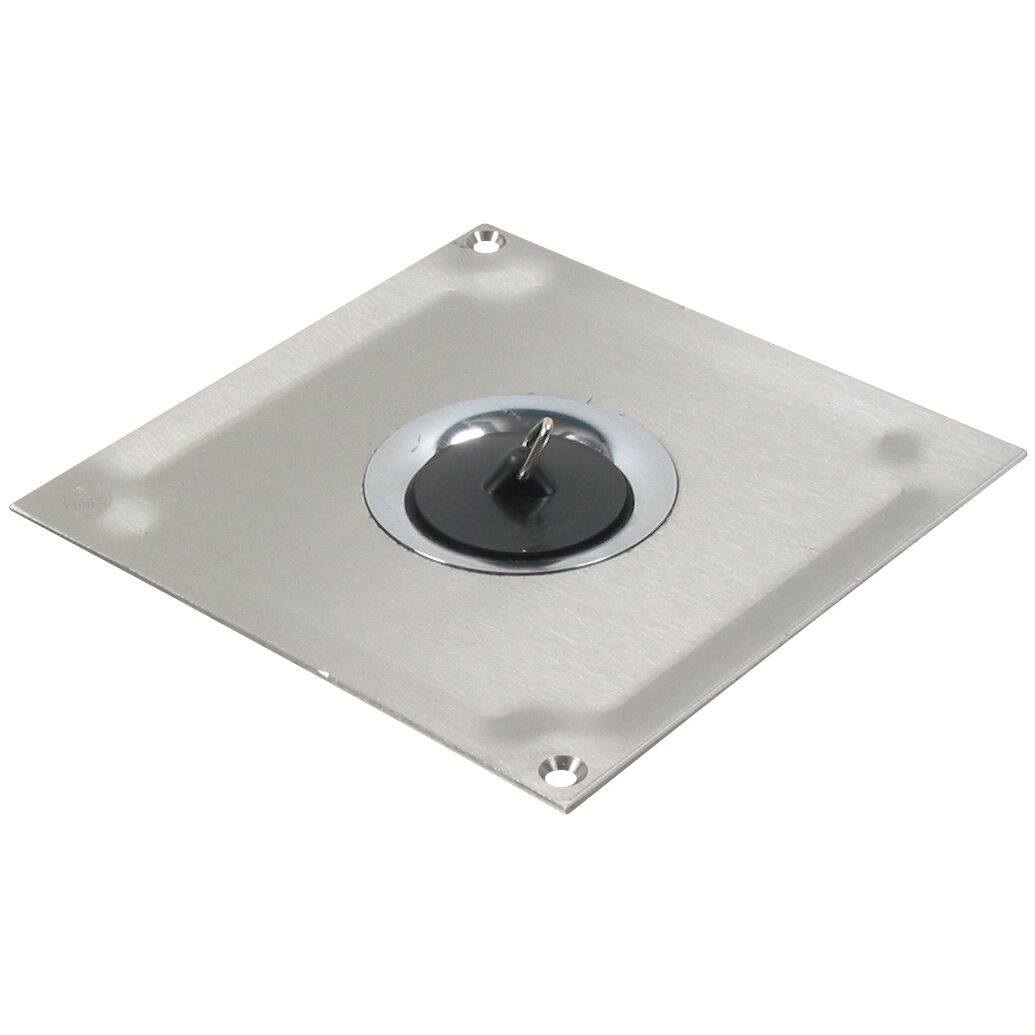

BLANK PLATE SQUARE
-With screw lock and 1¼" bottom valve
-Grating: 140x140mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 37 |
| Number of Screws | 2 |
| Shape | Square |
| Size (Inch) | 5½x5½ |
| Size (mm) | 140x140 |
| Weight (kg) | 0,33 |
| Weight (lbs) | 0,73 |
-
Approval Information
For approval information, please refer to the below approval certificates.
